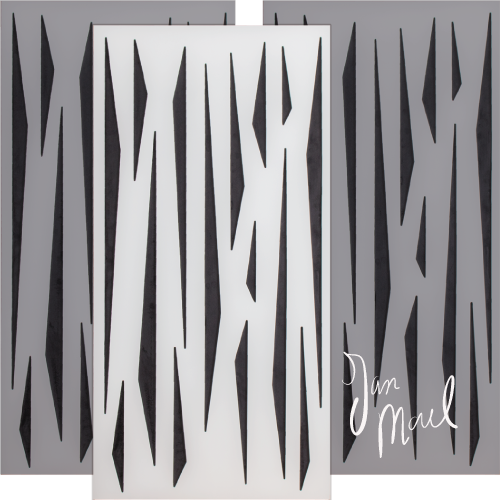

The Vector Wall Bass Trap is ideal for rooms with low frequency issues, taking full advantage of it small depth to place on walls alongside existing room treatment. With a peak absorption from 80 Hz to 120 Hz the Vector Wall Bass Trap is the bridge between the low and mid frequency absorptions, acting in the “low-high” frequency range.

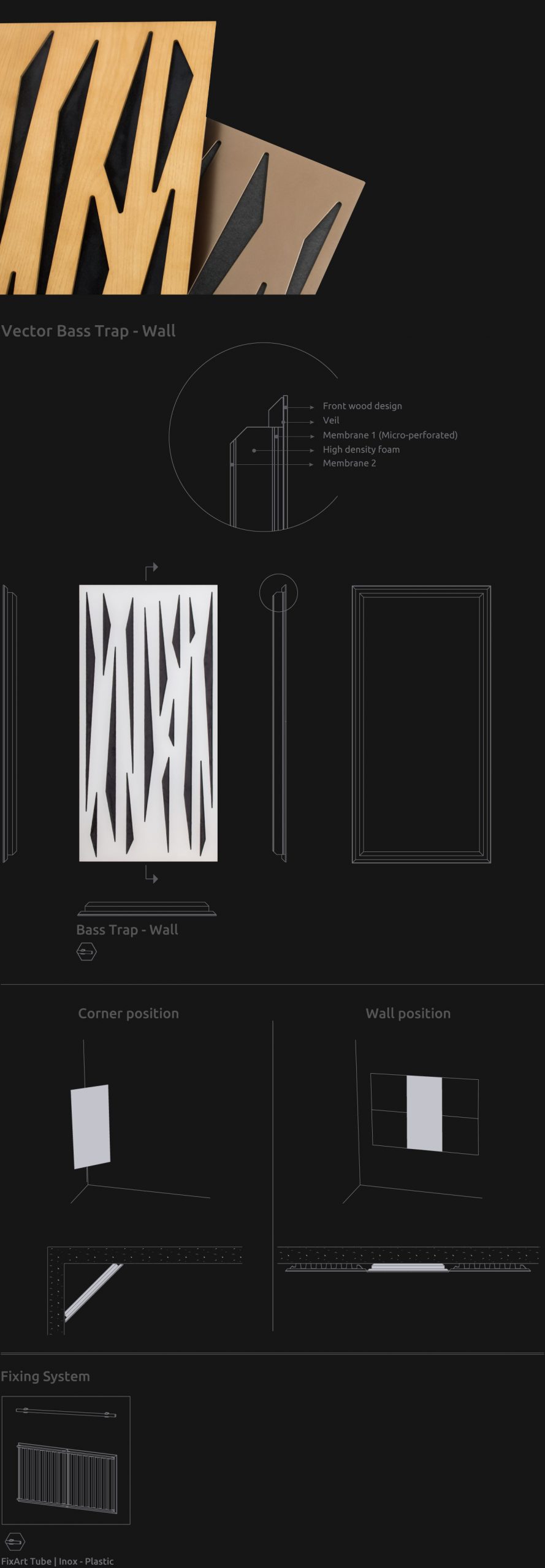

The Vector Wall Bass Trap is equipped with a double membrane surrounding a central acoustic core. This design allows for a larger membrane – lowering the resonant frequency, whilst increasing the volume of the inner air cavities – packing the most performance into the least volume possible.

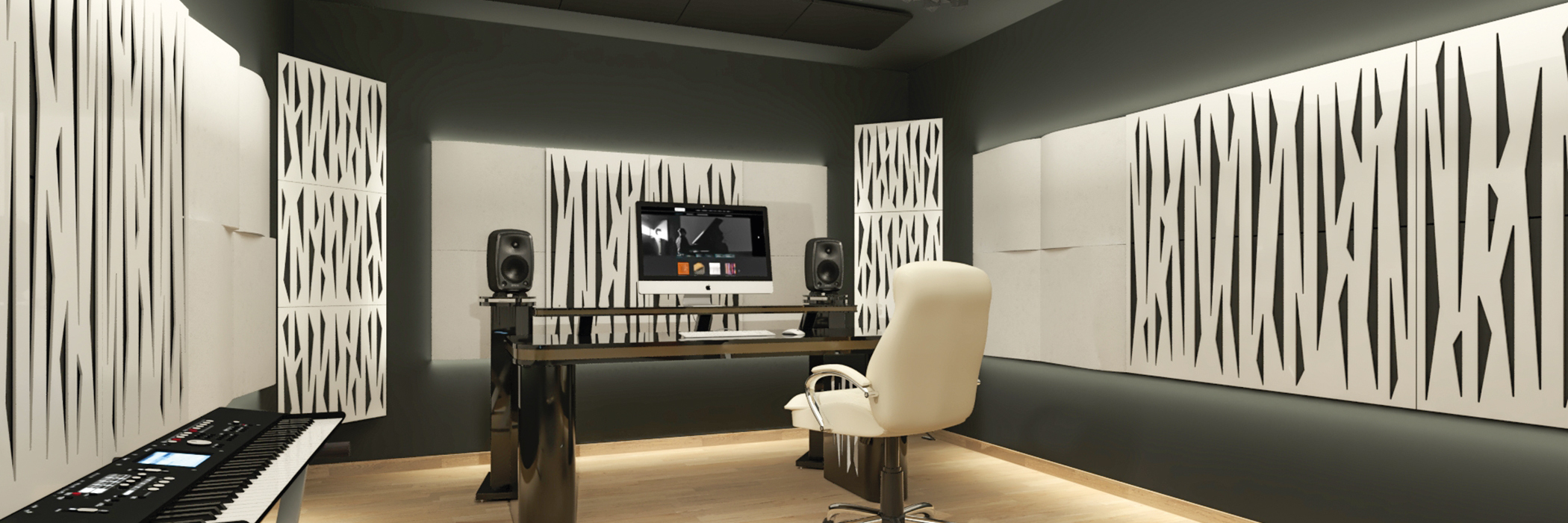

Its distinctive design offers a impressive, unique look to your studio, a true trademark of Jan Morel design.
Features
Absorption range: 80 Hz to 120 Hz
Tuned Frequency: 80 Hz
-Double membrane surrounding a central acoustic core
-Larger membrane lowering the resonant frequency
-Designed to be completely in line with other absorbers
Vector Wall Bass Trap: 595x1190x58mm
Fixing System: Fixart Tube
Finish: Lacquered or Wood Veneer

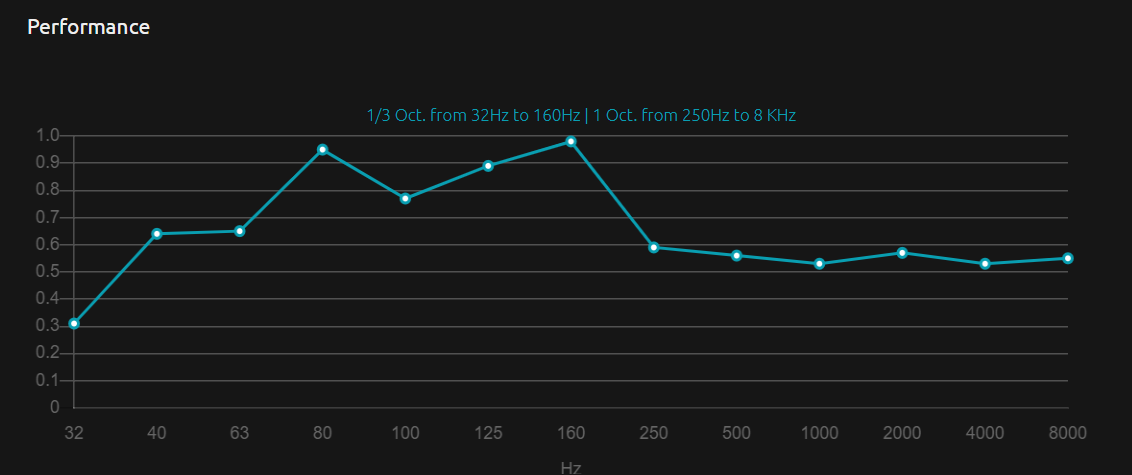

Acoustic performance:
Absorption range: 80Hz to 120 Hz
Tuned frequancy: 80Hz
Dimensions:
FG | 595x1190x58 mm
Finishing Material:
MDF Lacquer – FG | Furniture Grade
Installation:
FixArt Tube | Kit Mobile Wall
Disclaimer: When using FixArt Tube on the ceiling, it is obligatory to use the FixArt Lock security device. This system guarantees a safe and precise installation. Artnovion is not liable for any damage caused by improper use of FixArt Tube.
Dimensions:
595x1190x58mm
