COVID Safe Acoustics

Noise in healthcare facilities is a well know problem with serious consequences. Acoustic levels in today’s hospitals are the highest ever documented and have a tremendous impact on the privacy, comfort and stress levels of patients and staff. Even in well-being spaces, such as gyms, pools or spas; acoustic comfort plays a huge role in how beneficial and enjoyable our experience is.

Artnovion’s pioneer MedLine offers high-quality acoustic solutions tailored to the strict requirements of these spaces. From panels made from hospital-grade anti-bacterial coatings, to extremely hard-wearing, washable, anti-odour finishes – the Medline caters to a wide market, solving acoustic issues in environments that – up to now – have been impossible to address.

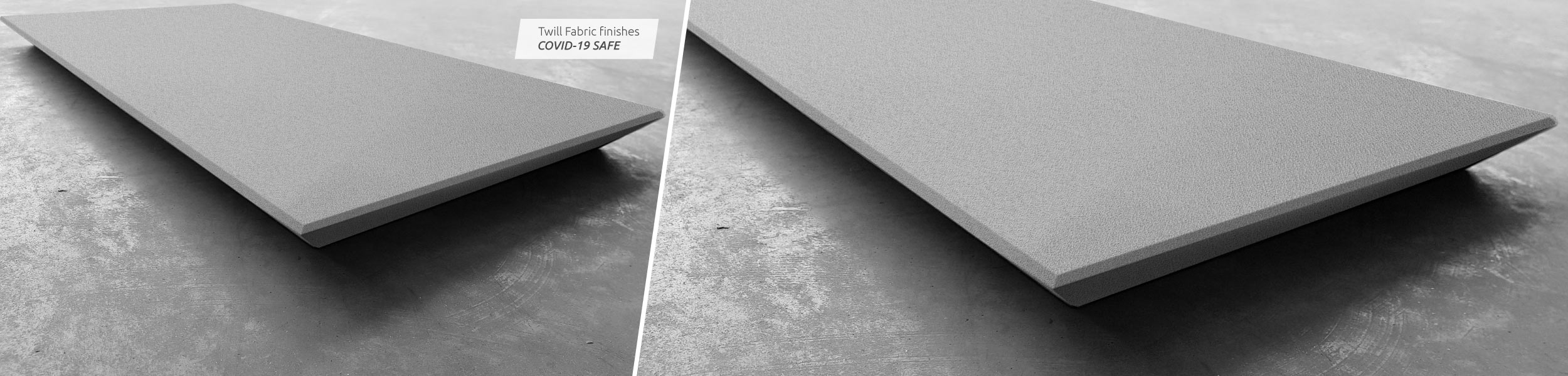

Sparta is an acoustic panel with a simple design fashioned for an absorption treatment range from 350 Hz up to 8000 Hz.

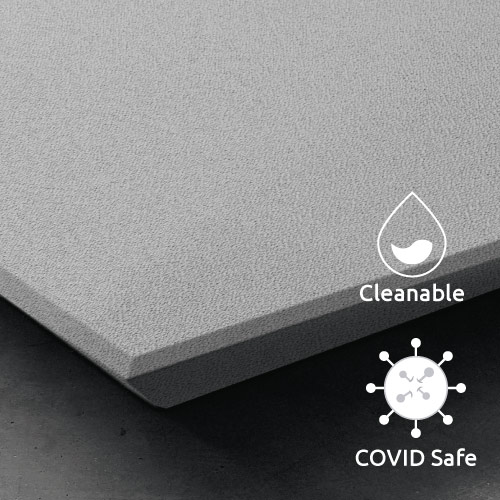

The COVID-19 pandemic has challenged operational standards for all sectors of the economy. COVID-19 Safe (cleanable) available on the Twill Fabric Finish.

Features

Type:
Absorber

Absorption Range:
350 Hz to 8000 Hz

Acoustic Class:
B | (aw) = 0,95

Purposes

-Noise control
-Reducing excessive reverberation
-Improving speech intelligibility

Overview

Purpose

-Improved speech intelligibility
-Noise control
-Reducing excessive reverberation

Recommended for

Healthcare & Well-being
-Public Spaces
– Meeting Rooms
-Auditoriums
-Food Courts
-Public Corridors

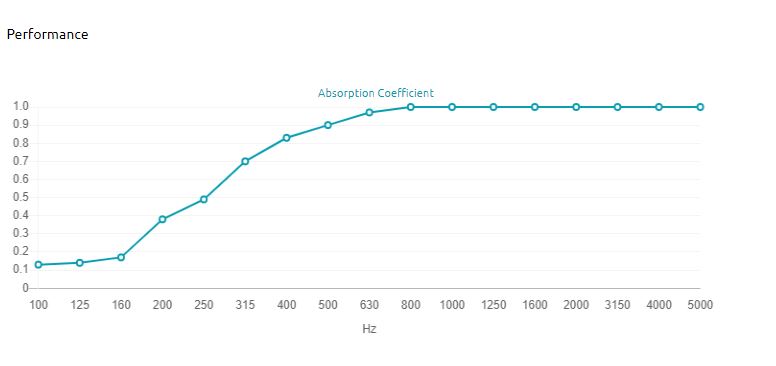

Absorption Range: 350 Hz to 8000 Hz
Acoustic Class: B | (aw) = 0,95

Notice: COVID-19 Safe (clenable) only available on the Twill Finish.

_______

This product is available in the following

Fire Rate:
FR | Fire Rated & COVID-19 Safe

PRODUCT COMPOSITION:

Sparta Med CL | Twill Fabric Finish
( FR & COVID-19 Safe )
-Twill Acoustic fabric* | COVID-19 Safe
-Fire Retardant HMDF Structural Frame
-Sound PET absorption layer

*Certified to OEKO-TEX® Standard 100,
BS EN 13501-1 B, s1, d0

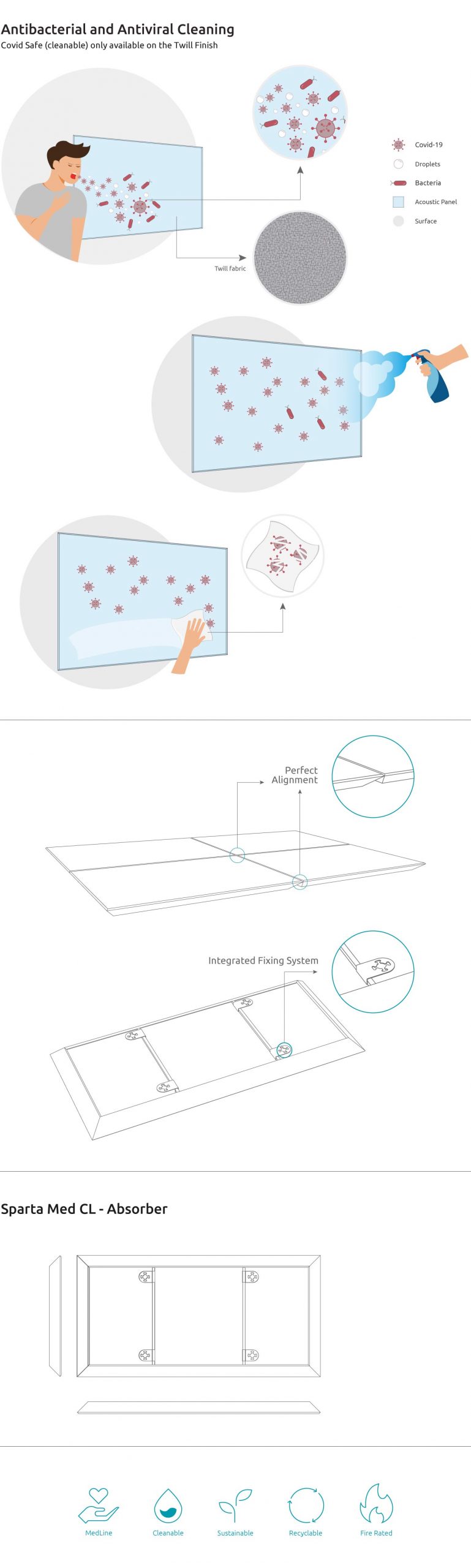

Fixing system:
This panel is installed with an integrated fixing system, hung on screws.

Dimensions:
FR – TF | 595x1190x45mm

Available Finishes:

(FR - TF) Twill Fabric Finishes | COVID-19 Safe (cleanable)

FR | (T61) Slate Grey

EAN 13: 5600928218041

Dimensions: 595x1190x45mm
Weight: 3.68Kg

BOX

Units per box: 4
Dimensions: 1235x255x655mm
Volume: 0.206m3   |   Weight: 24.72Kg

FR | (T62) Ivory

EAN 13: 5600928218058

Dimensions: 595x1190x45mm
Weight: 3.68Kg

BOX

Units per box: 4
Dimensions: 1235x255x655mm
Volume: 0.206m3   |   Weight: 24.72Kg

FR | (T65) Black

EAN 13: 5600928218065

Dimensions: 595x1190x45mm
Weight: 3.68Kg

BOX

Units per box: 4
Dimensions: 1235x255x655mm
Volume: 0.206m3   |   Weight: 24.72Kg

FR | (T66) Sand

EAN 13: 5600928218072

Dimensions: 595x1190x45mm
Weight: 3.68Kg

BOX

Units per box: 4
Dimensions: 1235x255x655mm
Volume: 0.206m3   |   Weight: 24.72Kg

FR | (T67) Burgundy

EAN 13: 5600928218089

Dimensions: 595x1190x45mm
Weight: 3.68Kg

BOX

Units per box: 4
Dimensions: 1235x255x655mm
Volume: 0.206m3   |   Weight: 24.72Kg

FR | (T74) Prussian Blue

EAN 13: 5600928218096

Dimensions: 595x1190x45mm
Weight: 3.68Kg

BOX

Units per box: 4
Dimensions: 1235x255x655mm
Volume: 0.206m3   |   Weight: 24.72Kg

FR | (T75) Charcoal

EAN 13: 5600928218102

Dimensions: 595x1190x45mm
Weight: 3.68Kg

BOX

Units per box: 4
Dimensions: 1235x255x655mm
Volume: 0.206m3   |   Weight: 24.72Kg

FR | (T77) Eggshell

EAN 13: 5600928218119

Dimensions: 595x1190x45mm
Weight: 3.68Kg

BOX

Units per box: 4
Dimensions: 1235x255x655mm
Volume: 0.206m3   |   Weight: 24.72Kg

Download
