Moritz - Panelling

Versatile absorption for the harshest environments

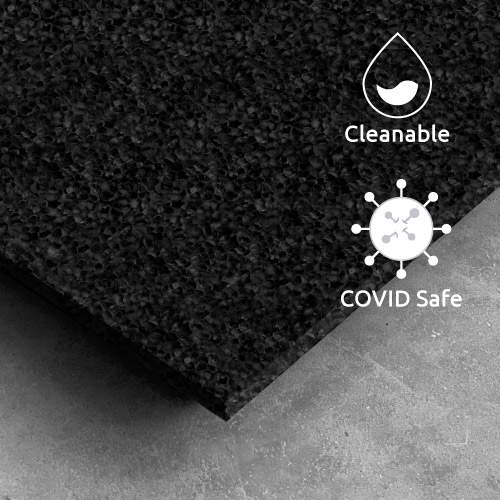

Moritz is a durable, semi-rigid closed-cell foam. It has an internal honeycomb-like structure that grants it exceptional performance.

It is used to reduce reverberation or create a noise barrier in practically any type of environment, from high humidity areas such as swimming pools or outdoor spaces, to the most extreme high wear situations that require resistance to most chemicals and solvents, commonly found in healthcare environments or the manufacturing and service industries. Moritz is integrally fire retardant.

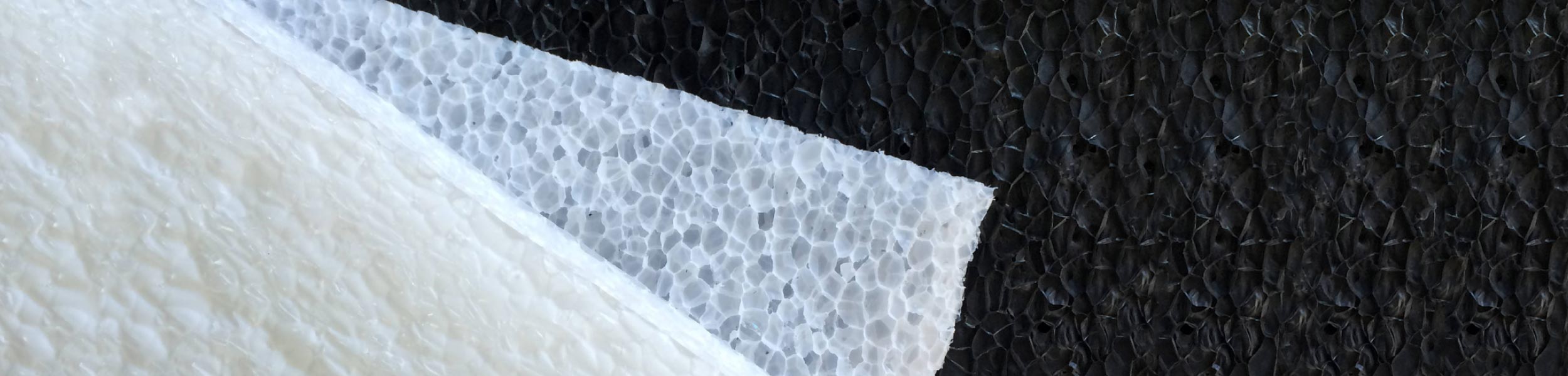

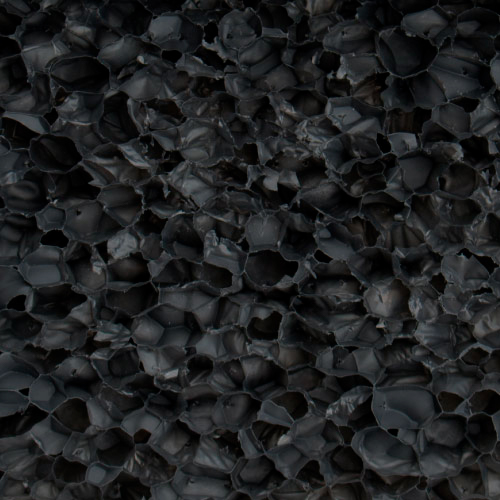

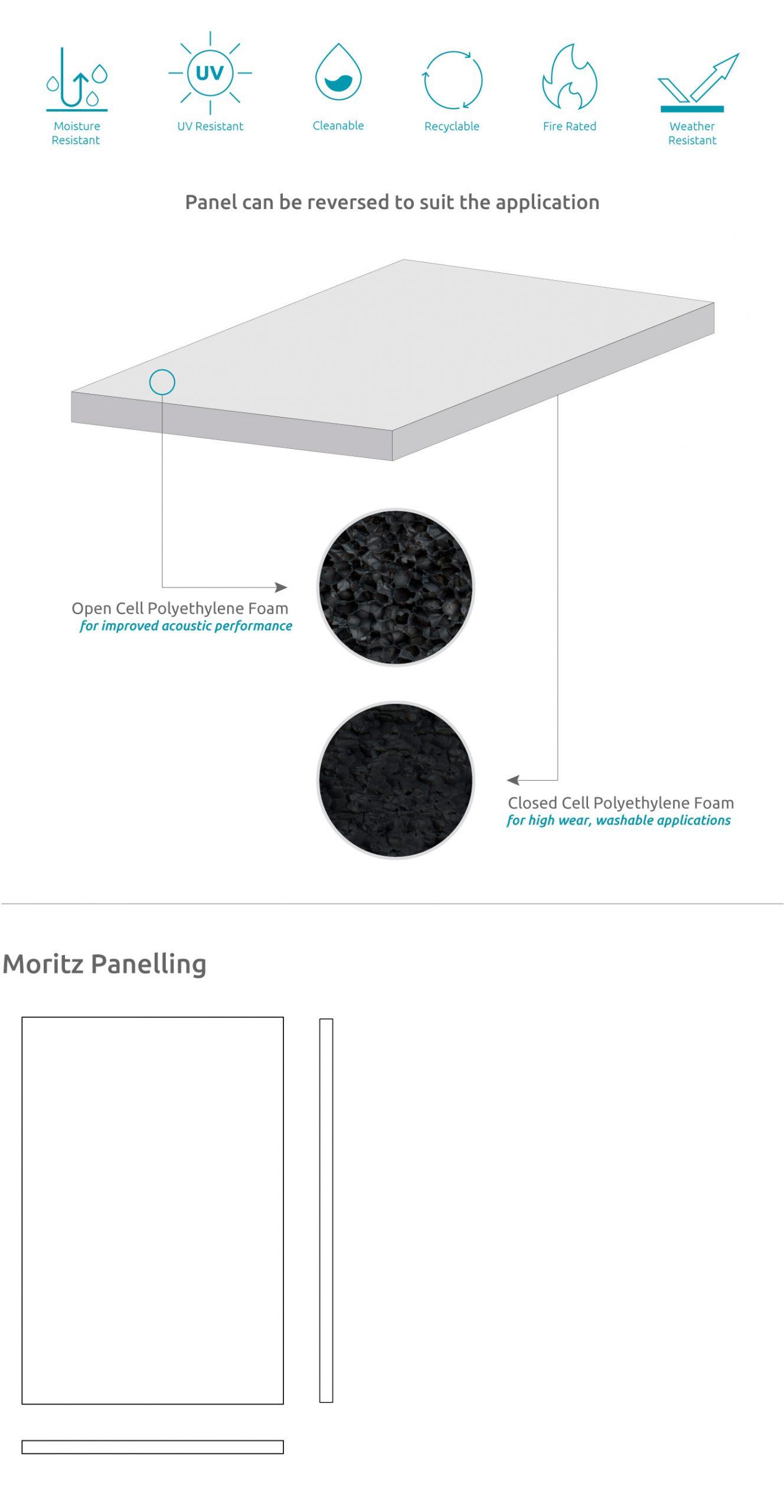

Moritz panelling can be reversed to expose either an open-cell structure, that boosts high-frequency absorption, or closed-cell structure, for when the panel needs to be easily cleanable.
Moritz is lightweight and self-supporting. It is easily installed with fasteners or adhesive and can be cut to size on site.

Features

Type:
Absorber

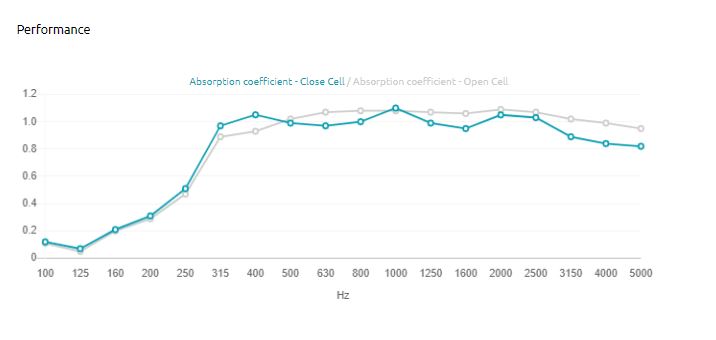

Absorption Range:
350 Hz to 5000 Hz

Acoustic Class
A | (aw) = 0,9

Purposes

-RT reduction
-Improving speech intelligibility
-High-frequency absorption
-Reducing excessive reverberation

Overview

Purpose
-RT reduction
-Improving speech intelligibility
-High-frequency absorption
-Reducing excessive reverberation

Recommended for
-Industrial noise control
-Sanitary or harsh environments
-High humidity environments
-Outdoor spaces

Absorption Range: 350 Hz to 5000 Hz

Acoustic Class: A | (αw) = 0,9

_______

This product is available in the following Fire Rate:

FR | Fire Rated*
_______

PRODUCT COMPOSITION:

Moritz | Polyethelene Foam (FR)
-Reversable: Closed Cell | Open Cell
-Euroclass B s1,d0

Dimensions:

FR | 800x1184x40mm

Available Finishes:

(FR) Product Fire Grade - Fire Rated

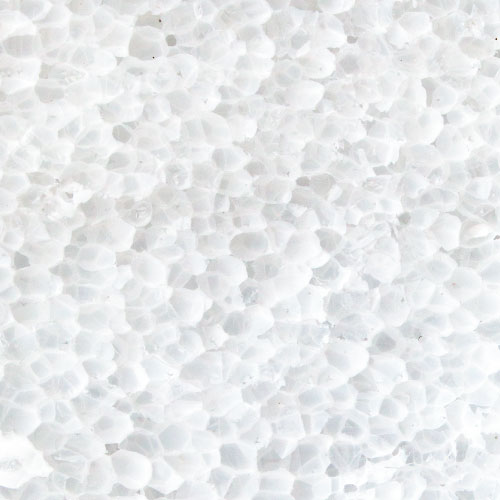

Moritz – Panelling – FR | (F04) Bianco | One Side Open Cell, Other Side Closed Cell

EAN 13: 5600928215026

Dimensions: 800x1184x40mm

Weight: 1.15Kg

BOX

Units per box: 10
Dimensions: 1270x870x430mm
Volume: 0.475m3   |   Weight: 15.85Kg

Moritz – Panelling – FR | (F05) Nero | One Side Open Cell, Other Side Closed Cell

EAN 13: 5600928215033

Dimensions:  800x1184x40mm
Weight: 1.15Kg

BOX

Units per box: 10
Dimensions: 1270x870x430mm
Volume: 0.475m3   |   Weight: 15.85Kg

Download
