Versatile absorption for the harshest environments

Moritz is a durable, semi-rigid closed-cell foam. It has an internal honeycomb-like structure that grants it exceptional acoustic performance.

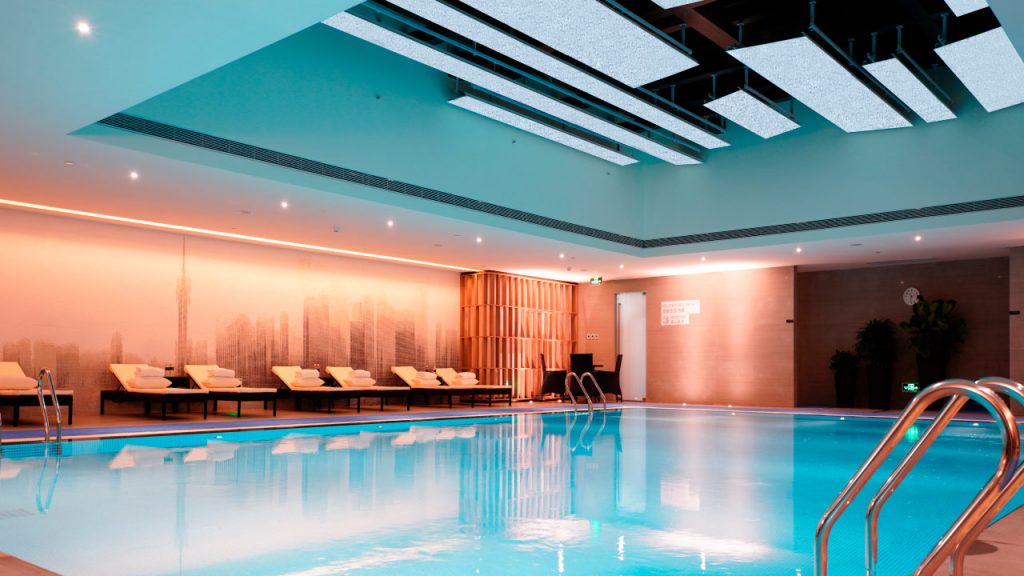

It is used to reduce reverberation in practically any type of environment, from high humidity areas such as swimming pools or outdoor spaces, to the most extreme high wear situations that require resistance to most chemicals and solvents, commonly found in healthcare environments or the manufacturing and service industries. Moritz is integrally fire retardant.

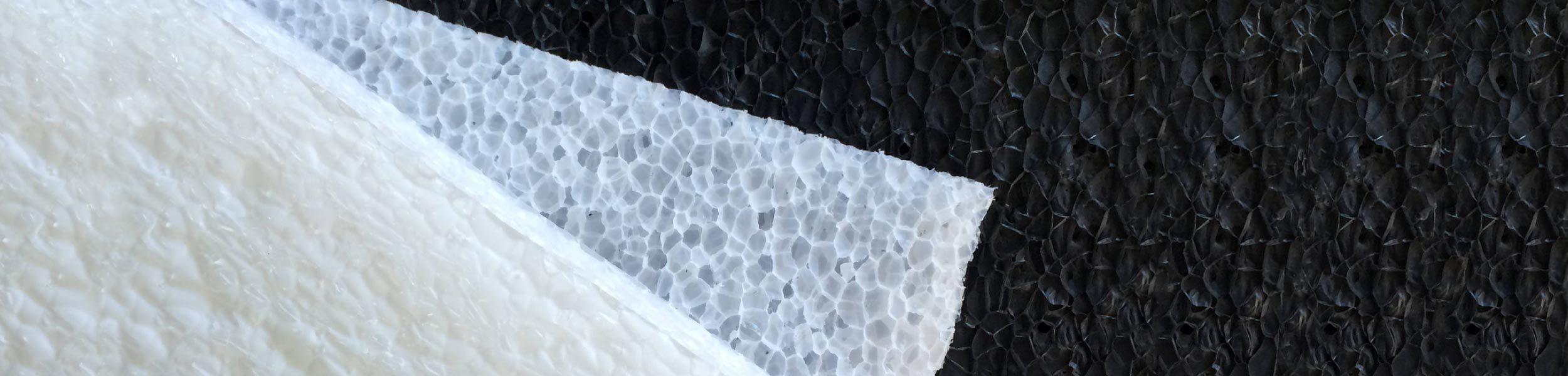

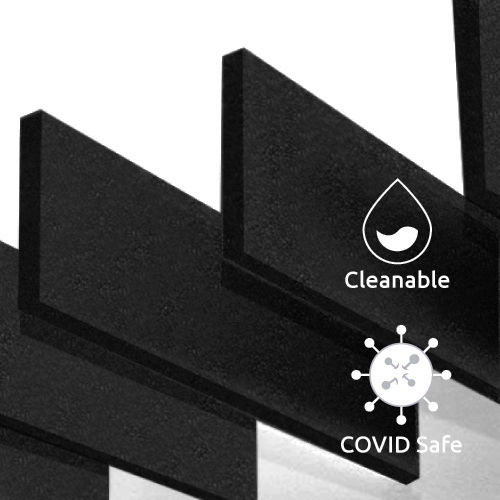

Moritz Baffle is available in both open-cell structure, that boosts high-frequency absorption, or closed-cell structure for when the panel needs to be easily cleanable.

Moritz is lightweight and self-supporting. It is easily installed with the included hanging system, that is height adjustable up to 1,5m.

Features

Type:
Absorber

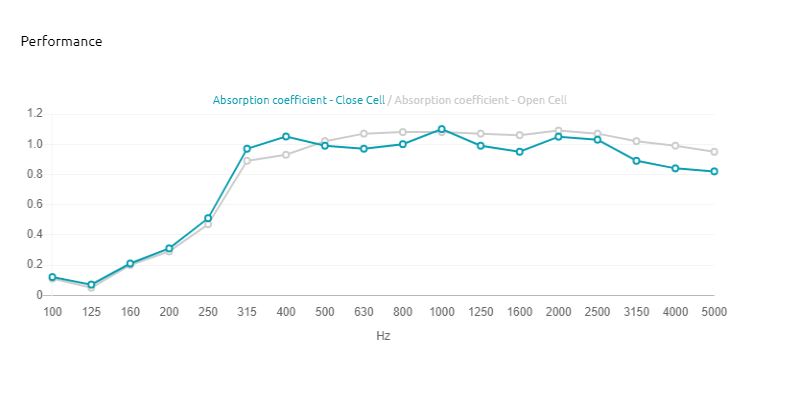

Absorption Range:
350 Hz to 5000 Hz

Acoustic Class:
C | (aw) = 0,70

Purposes

-RT reduction
-Reducing excessive reverberation
-High-frequency absorption
-Improving speech intelligibility

Overview

Purpose

-RT reduction
-Improved speech intelligibility
-High-frequency absorption
-Reducing excessive reverberation

Recommended for

-Industrial noise control
-Sanitary or harsh environments
-High humidity environments
-Outdoor spaces

Absorption Range: 350 Hz to 5000 Hz
Acoustic Class: C | (aw) = 0,70

This product is available in the following Fire Rate
FR | Fire Rated*
________
PRODUCT COMPOSITION:

Moritz | Polyethelene Foam (FR)
-Closed Cell | Open Cell
-Euroclass B s1,d0

Installation:
-Ceiling suspension kit included

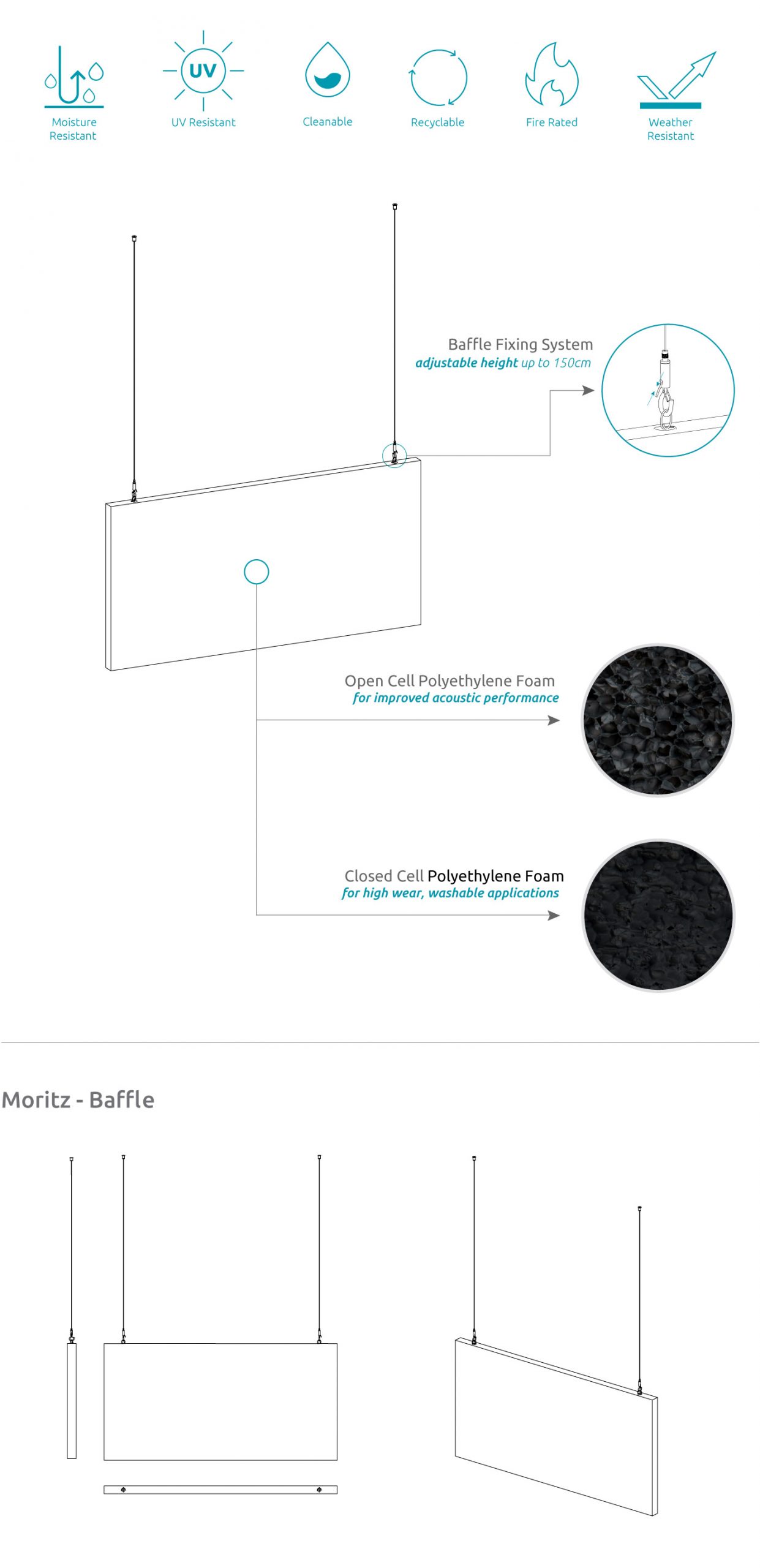

Moritz is suspended with an easily adjustable cable system, that allows to hang the panel up to 1,5m from the ceiling.

Dimensions:
FR | 1190x595x40mm

Available Finishes:

(FR) Product Fire Grade - Fire Rated

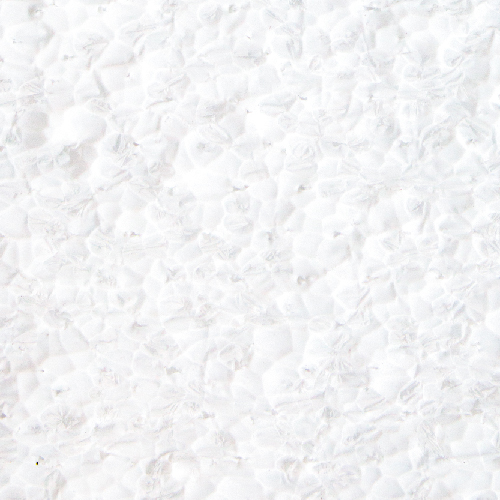

FR | (F04) Bianco | Closed Cell

EAN 13: 5600928214906

Dimensions: 1190x595x40mm
Weight: 0.86Kg

BOX

Units per box: 6
Dimensions: 1260x290x710mm
Volume: 0.259m3   |   Weight: 7.11Kg

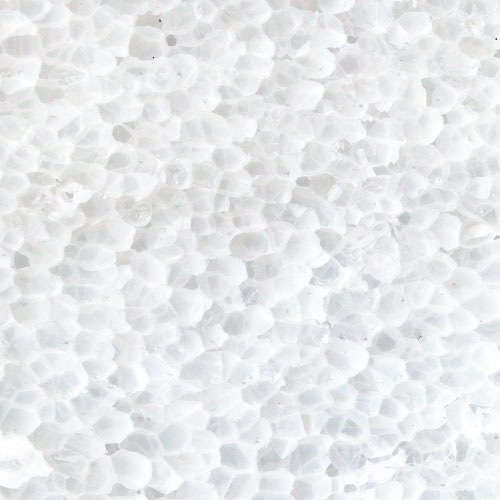

FR | (F04) Bianco | Open Cell

EAN 13: 5600928214920

Dimensions: 1190x595x40mm
Weight: 0.86Kg

BOX

Units per box: 6
Dimensions: 1260x290x710mm
Volume: 0.259m3   |   Weight: 7.11Kg

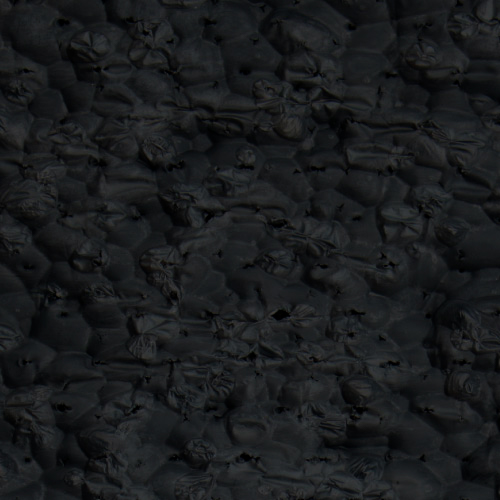

FR | (F05) Nero | Closed Cell

EAN 13: 5600928214913

Dimensions: 1190x595x40mm
Weight: 0.86Kg

BOX

Units per box: 6
Dimensions: 1260x290x710mm
Volume: 0.259m3   |   Weight: 7.11Kg

FR | (F05) Nero | Open Cell

EAN 13: 5600928214937

Dimensions: 1190x595x40mm
Weight: 0.86Kg

BOX

Units per box: 6
Dimensions: 1260x290x710mm
Volume: 0.259m3   |   Weight: 7.11Kg
