Logan W – Diffuser
Lyra - Ceiling Tile | Range
Improving aesthetics and acoustics of ceilings around the world
The refurbished Artnovion ceiling tile range is the perfect acoustic solution to apply on any T-frame grid system. This product line features adapted versions of the panel designs you love, all fully compatible with public building regulations and available in 4 different sizes – two for metric sized (M) and two for imperial sized (I) grid structures. Our ceiling tiles provide a simple, fast installation procedure in multiple environments such as shopping centers, offices, clinics and waiting rooms.
Features
Type:
Absorber
Absorption Range:
350 Hz to 3150 Hz
Acoustic Class
C(aw) = 0,7
Purposes
-RT reduction
-High-frequency absorption
-Improving speech intelligibility
Overview

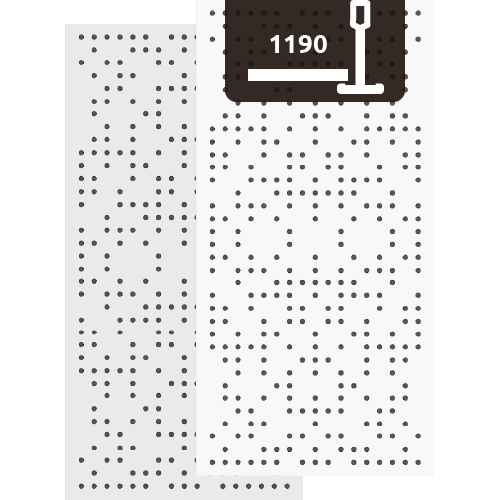

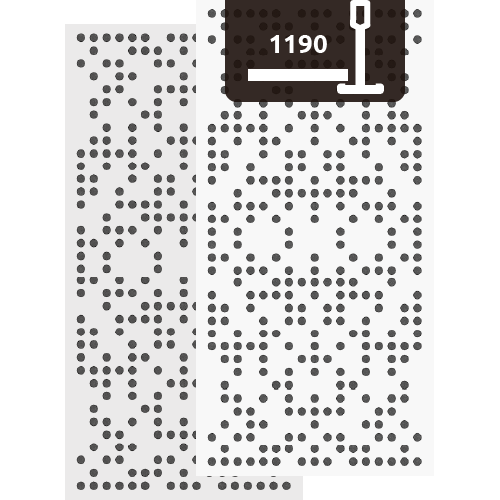

Lyra 12 RCT
Purpose:
-RT reduction
-High-frequency absorption
-Improving speech intelligibility
Recommended for:
-Office
-Hospitality
-Public Spaces
-Conference Room
-Auditorium

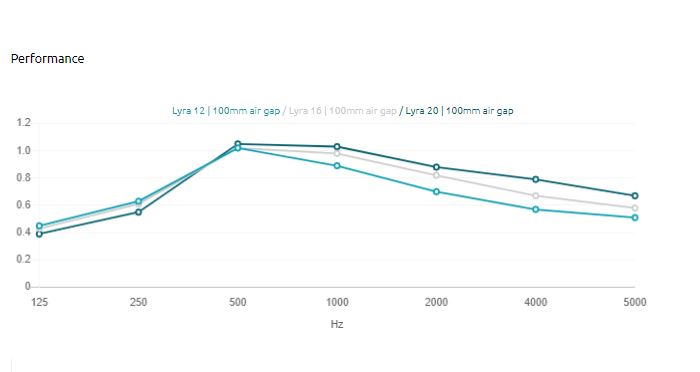

Absorption Range: 350 Hz to 3150 Hz
Acoustic Class: C | (aw) = 0,7
This product is available in the following Fire Rates:
FG | Furniture Grade
FR | Fire Rated
_______
PRODUCT COMPOSITION:
Lyra 12 RCT | Natural Wood Veneer | Primer Finished HMDF (FG)
-Natural Wood Veneer | Primer Finished HMDF *
-Sound PET acoustic core – Euro Class B
Lyra 12 RCT | Natural Wood Veener | Lacquered Fire retardant HMDF (FR)
-Natural Wood Veneer | Lacquered Fire Retardant HMDF
-Sound PET acoustic core – Euro Class B
* finished with a white or black primer paint that gives it a raw, matte effect.
– Perforated area: 5%
_______
Dimensions:
FG – PP | 595x1190x38mm
FG – LW | 595x1190x38mm
FG – NW | 595x1190x38mm
FR – LW | 595x1190x39mm
FR – NW | 595x1190x39mm
Available Finishes:
(FG – PP) Painted Primer Finishes
Lyra 12 RCT – Ceiling Tile – FG | (L11) Raw White
EAN 13: 5600449584540
Dimensions: 595x1190x38mm
Weight: 5.5Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 30.5Kg
Lyra 12 RCT – Ceiling Tile – FG | (L12) Raw Black
EAN 13: 5600449584557
Dimensions: 595x1190x38mm
Weight: 5.5Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 30.5Kg
(FG – LW) Lacquered Wood Finishes
Lyra 12 RCT – Ceiling Tile – FG | (L16) RAL 9003
EAN 13: 5600928217600
Dimensions: 595x1190x38mm
Weight: 5.5Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 30.5Kg
Lyra 12 RCT – Ceiling Tile – FG | (L17) RAL 9005
EAN 13: 5600928217617
Dimensions: 595x1190x38mm
Weight: 5.5Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 30.5Kg
(FG – NW) Natural Wood Finishes
Lyra 12 RCT – Ceiling Tile – FG | (W08) Wenge Natura
EAN 13: 5600449584564
Dimensions: 595x1190x38mm
Weight: 5.5Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 30.5Kg
Lyra 12 RCT – Ceiling Tile – FG | (W09) Black Walnut Natura
EAN 13: 5600449584571
Dimensions: 595x1190x38mm
Weight: 5.5Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 30.5Kg
Lyra 12 RCT – Ceiling Tile – FG | (W11) Okoumé Natura
EAN 13: 5600449584588
Dimensions: 595x1190x38mm
Weight: 5.5Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 30.5Kg
Lyra 12 RCT – Ceiling Tile – FG | (W12) Ash Natura
EAN 13: 5600449584595
Dimensions: 595x1190x38mm
Weight: 5.5Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 30.5Kg
(FR – LW) Lacquered Wood Finishes
Lyra 12 RCT – Ceiling Tile – FR | (L16) RAL 9003
EAN 13: 5600928216122
Dimensions: 595x1190x39mm
Weight: 5.5Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 30.5Kg
Lyra 12 RCT – Ceiling Tile – FR | (L17) RAL 9005
EAN 13: 5600928216139
Dimensions: 595x1190x39mm
Weight: 5.5Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 30.5Kg
(FR – NW) Natural Wood Finishes
Lyra 12 RCT – Ceiling Tile – FR | (W08) Wenge Natura
EAN 13: 5600449584625
Dimensions: 595x1190x39mm
Weight: 5.5Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 30.5Kg
Lyra 12 RCT – Ceiling Tile – FR | (W09) Black Walnut Natura
EAN 13: 5600449584632
Dimensions: 595x1190x39mm
Weight: 5.5Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 30.5Kg
Lyra 12 RCT – Ceiling Tile – FR | (W11) Okoumé Natura
EAN 13: 5600449584649
Dimensions: 595x1190x39mm
Weight: 5.5Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 30.5Kg
Lyra 12 RCT – Ceiling Tile – FR | (W12) Ash Natura
EAN 13: 5600449584656
Dimensions: 595x1190x39mm
Weight: 5.5Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 30.5Kg
Download

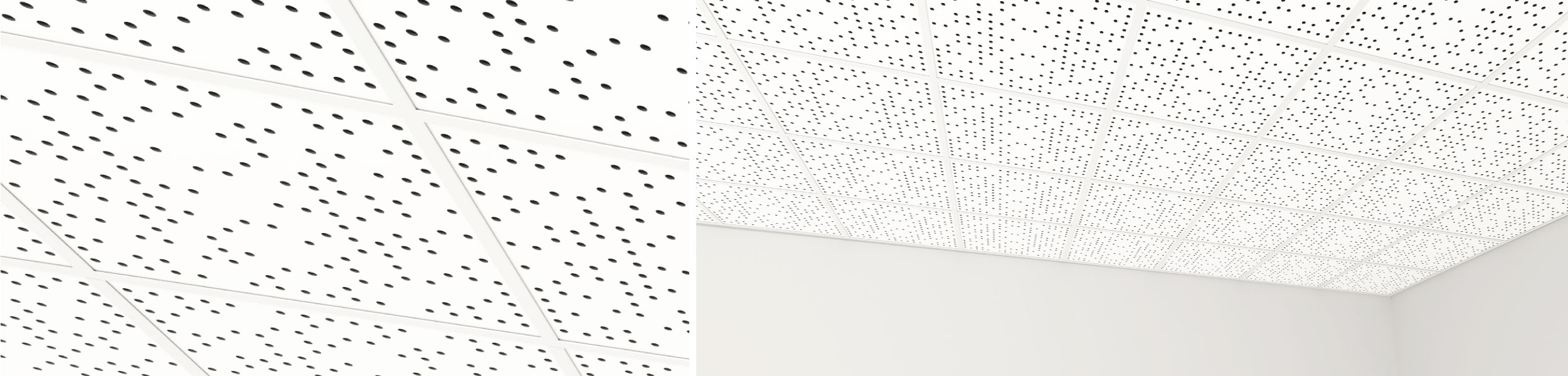

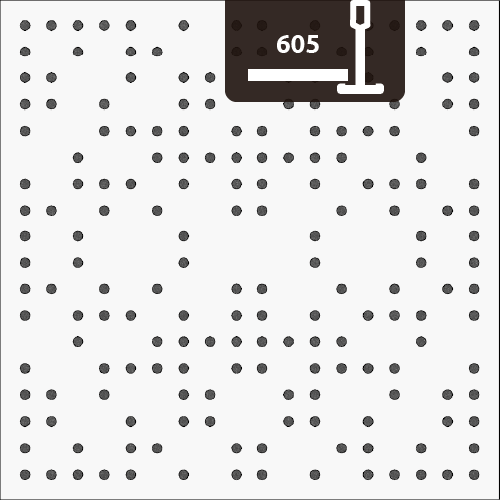

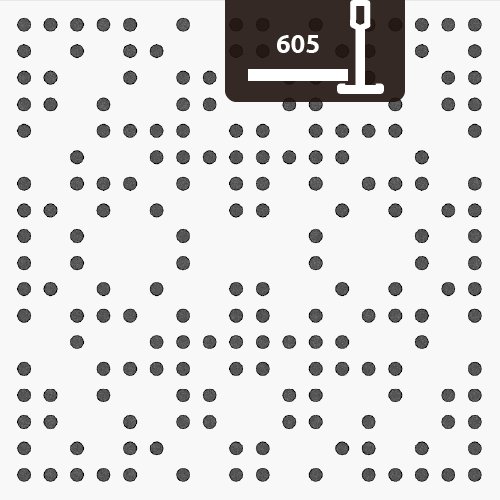

Lyra 12 SQR I
Purpose:
-RT reduction
-High-frequency absorption
-Improving speech intelligibility
Recommended for:
-Office
-Hospitality
-Public Spaces
-Conference Room
-Auditorium
Absorption Range: 350 Hz to 3150 Hz
Acoustic Class: C | (aw) = 0,7
This product is available in the following Fire Rates:
FG | Furniture Grade
FR | Fire Rated
_______
PRODUCT COMPOSITION:
Lyra 12 SQR I | Natural Wood Veneer | Primer Finished HMDF (FG)
-Natural Wood Veneer | Primer Finished HMDF *
– Sound PET acoustic core – Euro Class B
Lyra 12 SQR I | Natural Wood Veener | Lacquered Fire retardant HMDF (FR)
-Natural Wood Veneer | Lacquered Fire Retardant HMDF
-Sound PET acoustic core – Euro Class B
* finished with a white or black primer paint that gives it a raw, matte effect.
– Perforated area:5%
_______
Dimensions:
FG – PP | 605x605x38mm
FG – LW | 605x605x38mm
FG – NW | 605x605x38mm
FR – LW | 605x605x39mm
FR – NW | 605x605x39mm
Available Finishes:
(FG – PP) Painted Primer Finishes
Lyra 12 SQR I – Ceiling Tile – FG | (L11) Raw White
EAN 13: 5600449584908
Dimensions: 605x605x38mm
Weight: 3.3Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 23.5Kg
Lyra 12 SQR I – Ceiling Tile – FG | (L12) Raw Black
EAN 13: 5600449584915
Dimensions: 605x605x38mm
Weight: 3.3Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 23.5Kg
(FG – LW) Lacquered Wood Finishes
Lyra 20 RCT – Ceiling Tile – FG | (L16) RAL 9003
EAN 13: 5600928217723
Dimensions: 605x605x38mm
Weight: 3.3Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 23.5Kg
Lyra 12 SQR I – Ceiling Tile – FG | (L17) RAL 9005
EAN 13: 5600928217631
Dimensions: 605x605x38mm
Weight: 3.3Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 23.5Kg
(FG – NW) Natural Wood Finishes
Lyra 12 SQR I – Ceiling Tile – FG | (W08) Wenge Natura
EAN 13: 5600449584922
Dimensions: 605x605x38mm
Weight: 3.3Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 23.5Kg
Lyra 12 SQR I – Ceiling Tile – FG | (W09) Black Walnut Natura
EAN 13: 5600449584939
Dimensions: 605x605x38mm
Weight: 3.3Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 23.5Kg
Lyra 12 SQR I – Ceiling Tile – FG | (W11) Okoumé Natura
EAN 13: 5600449584946
Dimensions: 605x605x38mm
Weight: 3.3Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 23.5Kg
Lyra 12 SQR I – Ceiling Tile – FG | (W12) Ash Natura
EAN 13: 5600449584953
Dimensions: 605x605x38mm
Weight: 3.3Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 23.5Kg
(FR – LW) Lacquered Wood Finishes
Lyra 12 SQR I – Ceiling Tile – FR | (L16) RAL 9003
EAN 13: 5600928216146
Dimensions: 605x605x39mm
Weight: 3.3Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 23.5Kg
Lyra 12 SQR I – Ceiling Tile – FR | (L17) RAL 9005
EAN 13: 5600928216153
Dimensions: 605x605x39mm
Weight: 3.3Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 23.5Kg
(FR – NW) Natural Wood Finishes
Lyra 12 SQR I – Ceiling Tile – FR | (W09) Black Walnut Natura
EAN 13: 5600449584991
Dimensions: 605x605x39mm
Weight: 3.3Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 23.5Kg
Lyra 20 RCT – Ceiling Tile – FR | (W09) Black Walnut Natura
EAN 13: 5600449584397
Dimensions: 605x605x39mm
Weight: 3.3Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 23.5Kg
Lyra 12 SQR I – Ceiling Tile – FR | (W12) Ash Natura
EAN 13: 5600449585011
Dimensions: 605x605x39mm
Weight: 3.3Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 23.5Kg
Lyra 20 RCT – Ceiling Tile – FR | (W12) Ash Natura
EAN 13: 5600449584410
Dimensions: 605x605x39mm
Weight: 3.3Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 23.5Kg
Download

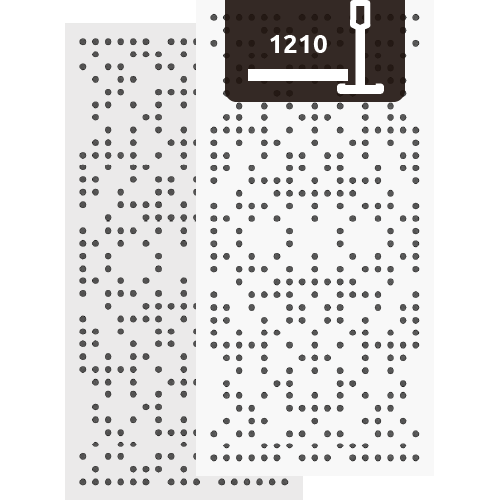

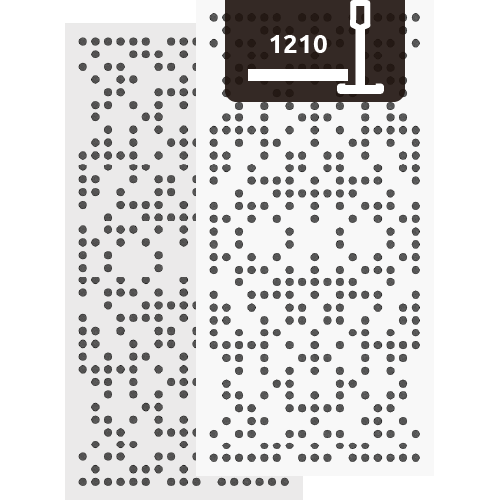

Lyra 12 RCT I
Purpose:
-RT reduction
-High-frequency absorption
-Improving speech intelligibility
Recommended for:
-Office
-Hospitality
-Public Spaces
-Conference Room
-Auditorium
Absorption Range: 350 Hz to 3150 Hz
Acoustic Class: C | (aw) = 0,7
This product is available in the following Fire Rates:
FG | Furniture Grade
FR | Fire Rated
_______
PRODUCT COMPOSITION:
Lyra 12 RCT I | Natural Wood Veneer | Primer Finished HMDF (FG)
-Natural Wood Veneer | Primer Finished HMDF *
-Sound PET acoustic core – Euro Class B
Lyra 12 RCT I | Natural Wood Veener | Lacquered Fire retardant HMDF (FR)
-Natural Wood Veneer | Lacquered Fire Retardant HMDF
-Sound PET acoustic core – Euro Class B
* finished with a white or black primer paint that gives it a raw, matte effect.
– Perforated area: 5%
_______
Dimensions:
FG – PP | 605x1210x38mm
FG – LW | 605x1210x38mm
FG – NW | 605x1210x38mm
FR – LW | 605x1210x39mm
FR – NW | 605x1210x39mm
Available Finishes:
(FG – PP) Painted Primer Finishes
Lyra 12 RCT I – Ceiling Tile – FG | (L11) Raw White
EAN 13: 5600449585264
Dimensions: 605x1210x38mm
Weight: 5.9Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 32.5Kg
Lyra 12 RCT I – Ceiling Tile – FG | (L12) Raw Black
EAN 13: 5600449585271
Dimensions: 605x1210x38mm
Weight: 5.9Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 32.5Kg
(FG – LW) Lacquered Wood Finishes
Lyra 12 RCT I – Ceiling Tile – FG | (L16) RAL 9003
EAN 13: 5600928217648
Dimensions: 605x1210x38mm
Weight: 5.9Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 32.5Kg
Lyra 12 RCT I – Ceiling Tile – FG | (L17) RAL 9005
EAN 13: 5600928217655
Dimensions: 605x1210x38mm
Weight: 5.9Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 32.5Kg
(FG – NW) Natural Wood Finishes
Lyra 12 RCT I – Ceiling Tile – FG | (W08) Wenge Natura
EAN 13: 5600449585288
Dimensions: 605x1210x38mm
Weight: 5.9Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 32.5Kg
Lyra 12 RCT I – Ceiling Tile – FG | (W09) Black Walnut Natura
EAN 13: 5600449585295
Dimensions: 605x1210x38mm
Weight: 5.9Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 32.5Kg
Lyra 12 RCT I – Ceiling Tile – FG | (W11) Okoumé Natura
EAN 13: 5600449585301
Dimensions: 605x1210x38mm
Weight: 5.9Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 32.5Kg
Lyra 12 RCT I – Ceiling Tile – FG | (W12) Ash Natura
EAN 13: 5600449585318
Dimensions: 605x1210x38mm
Weight: 5.9Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 32.5Kg
(FR – LW) Lacquered Wood Finishes
Lyra 12 RCT – Ceiling Tile – FR | (L16) RAL 9003
EAN 13: 5600928216122
Dimensions: 605x1210x39mm
Weight: 5.5Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 30.5Kg
Lyra 12 RCT – Ceiling Tile – FR | (L17) RAL 9005
EAN 13: 5600928216139
Dimensions: 605x1210x39mm
Weight: 5.5Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 30.5Kg
(FR – NW) Natural Wood Finishes
Lyra 12 RCT I – Ceiling Tile – FR | (W08) Wenge Natura
EAN 13: 5600449585349
Dimensions: 605x1210x39mm
Weight: 5.5Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 32.5Kg
Lyra 12 RCT I – Ceiling Tile – FR | (W09) Black Walnut Natura
EAN 13: 5600449585356
Dimensions: 605x1210x39mm
Weight: 5.5Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 32.5Kg
Lyra 12 RCT I – Ceiling Tile – FR | (W11) Okoumé Natura
EAN 13: 5600449585363
Dimensions: 605x1210x39mm
Weight: 5.5Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 32.5Kg
Lyra 12 RCT I – Ceiling Tile – FR | (W12) Ash Natura
EAN 13: 5600449585370
Dimensions: 605x1210x39mm
Weight: 5.5Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 32.5Kg
Download
Lyra 12 SQR
Purpose:
-RT reduction
-High-frequency absorption
-Improving speech intelligibility
Recommended for:
-Office
-Hospitality
-Public Spaces
-Conference Room
-Auditorium
Absorption Range: 350 Hz to 3150 Hz
Acoustic Class: C | (aw) = 0,7
This product is available in the following Fire Rates:
FG | Furniture Grade
FR | Fire Rated
_______
PRODUCT COMPOSITION:
Lyra 12 SQR | Natural Wood Veneer | Primer Finished HMDF (FG)
-Natural Wood Veneer | Primer Finished HMDF *
-Sound PET acoustic core – Euro Class B
Lyra 12 SQR | Natural Wood Veener | Lacquered Fire retardant HMDF (FR)
-Natural Wood Veneer | Lacquered Fire Retardant HMDF
-Sound PET acoustic core – Euro Class B
* finished with a white or black primer paint that gives it a raw, matte effect.
– Perforated area: 5%
_______
Dimensions:
FG – PP | 595x595x38mm
FG – LW | 595x595x38mm
FG – NW | 595x595x38mm
FR – LW | 595x595x39mm
FR – NW | 595x595x39mm
Available Finishes:
(FG – PP) Painted Primer Finishes
Lyra 12 SQR – Ceiling Tile – FG | (L11) Raw White
EAN 13: 5600449584182
Dimensions: 595x595x38mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 22.5Kg
Lyra 12 SQR – Ceiling Tile – FG | (L12) Raw Black
EAN 13: 5600449584199
Dimensions: 595x595x38mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 22.5Kg
(FG – LW) Lacquered Wood Finishes
Lyra 12 SQR – Ceiling Tile – FG | (L16) RAL 9003
EAN 13: 5600928217822
Dimensions: 595x595x38mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 22.5Kg
Lyra 12 SQR – Ceiling Tile – FG | (L17) RAL 9005
EAN 13: 5600928217839
Dimensions: 595x595x38mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 22.5Kg
(FG – NW) Natural Wood Finishes
Lyra 12 SQR – Ceiling Tile – FG | (W08) Wenge Natura
EAN 13: 5600449584205
Dimensions: 595x595x38mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 22.5Kg
Lyra 12 SQR – Ceiling Tile – FG | (W09) Black Walnut Natura
EAN 13: 5600449584212
Dimensions: 595x595x38mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 22.5Kg
Lyra 12 SQR – Ceiling Tile – FG | (W11) Okoumé Natura
EAN 13: 5600449584229
Dimensions: 595x595x38mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 22.5Kg
Lyra 12 SQR – Ceiling Tile – FG | (W12) Ash Natura
EAN 13: 5600449584236
Dimensions: 595x595x38mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 22.5Kg
(FR – LW) Lacquered Wood Finishes
Lyra 12 SQR – Ceiling Tile – FR | (L16) RAL 9003
EAN 13: 5600928216344
Dimensions: 595x595x39mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 22.5Kg
Lyra 12 SQR – Ceiling Tile – FR | (L17) RAL 9005
EAN 13: 5600928216351
Dimensions: 595x595x39mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 22.5Kg
(FR – NW) Natural Wood Finishes
Lyra 12 SQR – Ceiling Tile – FR | (W08) Wenge Natura
EAN 13: 5600449584267
Dimensions: 595x595x39mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 22.5Kg
Lyra 12 SQR – Ceiling Tile – FR | (W09) Black Walnut Natura
EAN 13: 5600449584274
Dimensions: 595x595x39mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 22.5Kg
Lyra 12 SQR – Ceiling Tile – FR | (W11) Okoumé Natura
EAN 13: 5600449584281
Dimensions: 595x595x39mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 22.5Kg
Lyra 12 SQR – Ceiling Tile – FR | (W12) Ash Natura
EAN 13: 5600449584298
Dimensions: 595x595x39mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 22.5Kg
Download
Lyra 16 SQR
Purpose:
-RT reduction
-High-frequency absorption
-Improving speech intelligibility
Recommended for:
-Office
-Hospitality
-Public Spaces
-Conference Room
-Auditorium
Absorption Range: 350 Hz to 3150 Hz
Acoustic Class: C | (aw) = 0,7
This product is available in the following Fire Rates:
FG | Furniture Grade
FR | Fire Rated
_______
PRODUCT COMPOSITION:
Lyra 16 SQR | Natural Wood Veneer | Primer Finished HMDF (FG)
-Natural Wood Veneer | Primer Finished HMDF *
-Sound PET acoustic core – Euro Class B
Lyra 16 SQR | Natural Wood Veener | Lacquered Fire retardant HMDF (FR)
-Natural Wood Veneer | Lacquered Fire Retardant HMDF
-Sound PET acoustic core – Euro Class B
* finished with a white or black primer paint that gives it a raw, matte effect.
– Perforated area: 10%
_______
Dimensions:
FG – PP | 595x595x38mm
FG – LW | 595x595x38mm
FG – NW | 595x595x38mm
FR – LW | 595x595x39mm
FR – NW | 595x595x39mm
Available Finishes:
(FG – PP) Painted Primer Finishes
Lyra 16 SQR – Ceiling Tile – FG | (L11) Raw White
EAN 13: 5600449584069
Dimensions: 595x595x38mm
Weight: 2.9Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 17.5Kg
Lyra 16 SQR – Ceiling Tile – FG | (L12) Raw Black
EAN 13: 5600449584076
Dimensions: 595x595x38mm
Weight: 2.9Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 17.5Kg
(FG – LW) Lacquered Wood Finishes
Lyra 16 SQR – Ceiling Tile – FG | (L16) RAL 9003
EAN 13: 5600928217846
Dimensions: 595x595x38mm
Weight: 2.9Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 17.5Kg
Lyra 16 SQR – Ceiling Tile – FG | (L17) RAL 9005
EAN 13: 5600928217853
Dimensions: 595x595x38mm
Weight: 2.9Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 17.5Kg
(FG – NW) Natural Wood Finishes
Lyra 16 SQR – Ceiling Tile – FG | (W08) Wenge Natura
EAN 13: 5600449584083
Dimensions: 595x595x38mm
Weight: 2.9Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 17.5Kg
Lyra 16 SQR – Ceiling Tile – FG | (W09) Black Walnut Natura
EAN 13: 5600449584090
Dimensions: 595x595x38mm
Weight: 2.9Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 17.5Kg
Lyra 16 SQR – Ceiling Tile – FG | (W11) Okoumé Natura
EAN 13: 5600449584106
Dimensions: 595x595x38mm
Weight: 2.9Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 17.5Kg
Lyra 16 SQR – Ceiling Tile – FG | (W12) Ash Natura
EAN 13: 5600449584113
Dimensions: 595x595x38mm
Weight: 2.9Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 17.5Kg
(FR – LW) Lacquered Wood Finishes
Lyra 16 SQR – Ceiling Tile – FR | (L16) RAL 9003
EAN 13: 5600928216368
Dimensions: 595x595x39mm
Weight: 2.9Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 17.5Kg
Lyra 16 SQR – Ceiling Tile – FR | (L17) RAL 9005
EAN 13: 5600928216375
Dimensions: 595x595x39mm
Weight: 2.9Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 17.5Kg
(FR – NW) Natural Wood Finishes
Lyra 16 SQR – Ceiling Tile – FR | (W08) Wenge Natura
EAN 13: 5600449584144
Dimensions: 595x595x39mm
Weight: 2.9Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 17.5Kg
Lyra 16 SQR – Ceiling Tile – FR | (W09) Black Walnut Natura
EAN 13: 5600449584151
Dimensions: 595x595x39mm
Weight: 2.9Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 17.5Kg
Lyra 16 SQR – Ceiling Tile – FR | (W11) Okoumé Natura
EAN 13: 5600449584168
Dimensions: 595x595x39mm
Weight: 2.9Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 17.5Kg
Lyra 16 SQR – Ceiling Tile – FR | (W12) Ash Natura
EAN 13: 5600449584175
Dimensions: 595x595x39mm
Weight: 2.9Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 17.5Kg
Download
Lyra 16 SQR I
Purpose:
-RT reduction
-High-frequency absorption
-Improving speech intelligibility
Recommended for:
-Office
-Hospitality
-Public Spaces
-Conference Room
-Auditorium
Absorption Range: 350 Hz to 3150 Hz
Acoustic Class: C | (aw) = 0,7
This product is available in the following Fire Rates:
FG | Furniture Grade
FR | Fire Rated
_______
PRODUCT COMPOSITION:
Lyra 16 SQR I | Natural Wood Veneer | Primer Finished HMDF (FG)
-Natural Wood Veneer | Primer Finished HMDF *
-Sound PET acoustic core – Euro Class B
Lyra 16 SQR I | Natural Wood Veener | Lacquered Fire retardant HMDF (FR)
-Natural Wood Veneer | Lacquered Fire Retardant HMDF
-Sound PET acoustic core – Euro Class B
* finished with a white or black primer paint that gives it a raw, matte effect.
– Perforated area: 10%
_______
Dimensions:
FG – PP | 605x605x38mm
FG – LW | 605x605x38mm
FG – NW | 605x605x38mm
FR – LW | 605x605x39mm
FR – NW | 605x605x39mm
Available Finishes:
(FG – PP) Painted Primer Finishes
Lyra 16 SQR I – Ceiling Tile – FG | (L11) Raw White
EAN 13: 5600449584786
Dimensions: 605x605x38mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 18.5Kg
Lyra 16 SQR I – Ceiling Tile – FG | (L12) Raw Black
EAN 13: 5600449584793
Dimensions: 605x605x38mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 17.5Kg
(FG – LW) Lacquered Wood Finishes
Lyra 16 SQR I – Ceiling Tile – FG | (L16) RAL 9003
EAN 13: 5600928217686
Dimensions: 605x605x38mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 17.5Kg
Lyra 16 SQR I – Ceiling Tile – FG | (L17) RAL 9005
EAN 13: 5600928217693
Dimensions: 605x605x38mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 17.5Kg
(FG – NW) Natural Wood Finishes
Lyra 16 SQR I – Ceiling Tile – FG | (W08) Wenge Natura
EAN 13: 5600449584809
Dimensions: 605x605x38mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 17.5Kg
Lyra 16 SQR I – Ceiling Tile – FG | (W09) Black Walnut Natura
EAN 13: 5600449584816
Dimensions: 605x605x38mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 17.5Kg
Lyra 16 SQR I – Ceiling Tile – FG | (W11) Okoumé Natura
EAN 13: 5600449584823
Dimensions: 605x605x38mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 17.5Kg
Lyra 16 SQR I – Ceiling Tile – FG | (W12) Ash Natura
EAN 13: 5600449584830
Dimensions: 605x605x38mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 17.5Kg
(FR – LW) Lacquered Wood Finishes
Lyra 16 SQR I – Ceiling Tile – FR | (L16) RAL 9003
EAN 13: 5600928216207
Dimensions: 605x605x39mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 18.5Kg
Lyra 16 SQR I – Ceiling Tile – FR | (L17) RAL 9005
EAN 13: 5600928216214
Dimensions: 605x605x39mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 18.5Kg
(FR – NW) Natural Wood Finishes
Lyra 16 SQR I – Ceiling Tile – FR | (W08) Wenge Natura
EAN 13: 5600449584861
Dimensions: 605x605x39mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 18.5Kg
Lyra 16 SQR I – Ceiling Tile – FR | (W09) Black Walnut Natura
EAN 13: 5600449584878
Dimensions: 605x605x39mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 18.5Kg
Lyra 16 SQR I – Ceiling Tile – FR | (W11) Okoumé Natura
EAN 13: 5600449584885
Dimensions: 605x605x39mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 18.5Kg
Lyra 16 SQR I – Ceiling Tile – FR | (W12) Ash Natura
EAN 13: 5600449584892
Dimensions: 605x605x39mm
Weight: 3.1Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 18.5Kg
Download
Lyra 16 RCT
Purpose:
-RT reduction
-High-frequency absorption
-Improving speech intelligibility
Recommended for:
-Office
-Hospitality
-Public Spaces
-Conference Room
-Auditorium
Absorption Range: 350 Hz to 3150 Hz
Acoustic Class: C | (aw) = 0,7
This product is available in the following Fire Rates:
FG | Furniture Grade
FR | Fire Rated
_______
PRODUCT COMPOSITION:
Lyra 16 RCT | Natural Wood Veneer | Primer Finished HMDF (FG)
-Natural Wood Veneer | Primer Finished HMDF *
-Sound PET acoustic core – Euro Class B
Lyra 16 RCT | Natural Wood Veener | Lacquered Fire retardant HMDF (FR)
-Natural Wood Veneer | Lacquered Fire Retardant HMDF
-Sound PET acoustic core – Euro Class B
* finished with a white or black primer paint that gives it a raw, matte effect.
– Perforated area: 10%
_______
Dimensions:
FG – PP | 595x1190x38mm
FG – LW | 595x1190x38mm
FG – NW | 595x1190x38mm
FR – LW | 595x1190x39mm
FR – NW | 595x1190x39mm
Available Finishes:
(FG – PP) Painted Primer Finishes
Lyra 16 RCT – Ceiling Tile – FG | (L11) Raw White
EAN 13: 5600449584427
Dimensions: 595x1190x38mm
Weight: 6.0Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.75Kg
Lyra 16 RCT – Ceiling Tile – FG | (L12) Raw Black
EAN 13: 5600449584434
Dimensions: 595x1190x38mm
Weight: 6.0Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.75Kg
(FG – LW) Lacquered Wood Finishes
Lyra 16 RCT – Ceiling Tile – FG | (L16) RAL 9003
EAN 13: 5600928217662
Dimensions: 595x1190x38mm
Weight: 6.0Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.75Kg
Lyra 16 RCT – Ceiling Tile – FG | (L17) RAL 9005
EAN 13: 5600928217679
Dimensions: 595x1190x38mm
Weight: 6.0Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.75Kg
(FG – NW) Natural Wood Finishes
Lyra 16 RCT – Ceiling Tile – FG | (W08) Wenge Natura
EAN 13: 5600449584441
Dimensions: 595x1190x38mm
Weight: 6.0Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.75Kg
Lyra 16 RCT – Ceiling Tile – FG | (W09) Black Walnut Natura
EAN 13: 5600449584458
Dimensions: 595x1190x38mm
Weight: 6.0Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.75Kg
Lyra 16 RCT – Ceiling Tile – FG | (W11) Okoumé Natura
EAN 13: 5600449584465
Dimensions: 595x1190x38mm
Weight: 6.0Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.75Kg
Lyra 16 RCT – Ceiling Tile – FG | (W12) Ash Natura
EAN 13: 5600449584472
Dimensions: 595x1190x38mm
Weight: 6.0Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.75Kg
(FR – LW) Lacquered Wood Finishes
Lyra 16 RCT – Ceiling Tile – FR | (L16) RAL 9003
EAN 13: 5600928216184
Dimensions: 595x1190x39mm
Weight: 6.0Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.75Kg
Lyra 16 RCT – Ceiling Tile – FR | (L17) RAL 9005
EAN 13: 5600928216191
Dimensions: 595x1190x39mm
Weight: 6.0Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.75Kg
(FR – NW) Natural Wood Finishes
Lyra 16 RCT – Ceiling Tile – FR | (W08) Wenge Natura
EAN 13: 5600449584502
Dimensions: 595x1190x39mm
Weight: 6.0Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.75Kg
Lyra 16 RCT – Ceiling Tile – FR | (W09) Black Walnut Natura
EAN 13: 5600449584519
Dimensions: 595x1190x39mm
Weight: 6.0Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.75Kg
Lyra 16 RCT – Ceiling Tile – FR | (W11) Okoumé Natura
EAN 13: 5600449584526
Dimensions: 595x1190x39mm
Weight: 6.0Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.75Kg
Lyra 16 RCT – Ceiling Tile – FR | (W12) Ash Natura
EAN 13: 5600449584533
Dimensions: 595x1190x39mm
Weight: 6.0Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.75Kg
Download
Lyra 16 RCT I
Purpose:
-RT reduction
-High-frequency absorption
-Improving speech intelligibility
Recommended for:
-Office
-Hospitality
-Public Spaces
-Conference Room
-Auditorium
Absorption Range: 350 Hz to 3150 Hz
Acoustic Class: C | (aw) = 0,7
This product is available in the following Fire Rates:
FG | Furniture Grade
FR | Fire Rated
_______
PRODUCT COMPOSITION:
Lyra 16 RCT I | Natural Wood Veneer | Primer Finished HMDF (FG)
-Natural Wood Veneer | Primer Finished HMDF *
-Sound PET acoustic core – Euro Class B
Lyra 16 RCT I | Natural Wood Veener | Lacquered Fire retardant HMDF (FR)
-Natural Wood Veneer | Lacquered Fire Retardant HMDF
-Sound PET acoustic core – Euro Class B
* finished with a white or black primer paint that gives it a raw, matte effect.
– Perforated area: 10%
_______
Dimensions:
FG – PP | 605x1210x38mm
FG – LW | 605x1210x38mm
FG – NW | 605x1210x38mm
FR – LW | 605x1210x39mm
FR – NW | 605x1210x39mm
Available Finishes:
(FG – PP) Painted Primer Finishes
Lyra 16 RCT I – Ceiling Tile – FG | (L11) Raw White
EAN 13: 5600449585141
Dimensions: 605x1210x38mm
Weight: 6.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 44.5Kg
Lyra 16 RCT I – Ceiling Tile – FG | (L12) Raw Black
EAN 13: 5600449585158
Dimensions: 605x1210x38mm
Weight: 6.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 44.5Kg
(FG – LW) Lacquered Wood Finishes
Lyra 16 RCT I – Ceiling Tile – FG | (L16) RAL 9003
EAN 13: 5600928217709
Dimensions: 605x1210x38mm
Weight: 6.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 44.5Kg
Lyra 16 RCT I – Ceiling Tile – FG | (L17) RAL 9005
EAN 13: 5600928217716
Dimensions: 605x1210x38mm
Weight: 6.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 44.5Kg
(FG – NW) Natural Wood Finishes
Lyra 16 RCT I – Ceiling Tile – FG | (W08) Wenge Natura
EAN 13: 5600449585165
Dimensions: 605x1210x38mm
Weight: 6.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 44.5Kg
Lyra 16 RCT I – Ceiling Tile – FG | (W09) Black Walnut Natura
EAN 13: 5600449585172
Dimensions: 605x1210x38mm
Weight: 6.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 44.5Kg
Lyra 16 RCT I – Ceiling Tile – FG | (W11) Okoumé Natura
EAN 13: 5600449585189
Dimensions: 605x1210x38mm
Weight: 6.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 44.5Kg
Lyra 16 RCT I – Ceiling Tile – FG | (W12) Ash Natura
EAN 13: 5600449585196
Dimensions: 605x1210x38mm
Weight: 6.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 44.5Kg
(FR – LW) Lacquered Wood Finishes
Lyra 16 RCT I – Ceiling Tile – FR | (L16) RAL 9003
EAN 13: 5600928216221
Dimensions: 605x1210x39mm
Weight: 6.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 44.5Kg
Lyra 16 RCT I – Ceiling Tile – FR | (L17) RAL 9005
EAN 13: 5600928216238
Dimensions: 605x1210x39mm
Weight: 6.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 44.5Kg
(FR – NW) Natural Wood Finishes
Lyra 16 RCT I – Ceiling Tile – FR | (W08) Wenge Natura
EAN 13: 5600449585226
Dimensions: 605x1210x39mm
Weight: 6.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 44.5Kg
Lyra 16 RCT I – Ceiling Tile – FR | (W09) Black Walnut Natura
EAN 13: 5600449585233
Dimensions: 605x1210x39mm
Weight: 6.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 44.5Kg
Lyra 16 RCT I – Ceiling Tile – FR | (W11) Okoumé Natura
EAN 13: 5600449585240
Dimensions: 605x1210x39mm
Weight: 6.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 44.5Kg
Lyra 16 RCT I – Ceiling Tile – FR | (W12) Ash Natura
EAN 13: 5600449585257
Dimensions: 605x1210x39mm
Weight: 6.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 44.5Kg
Download

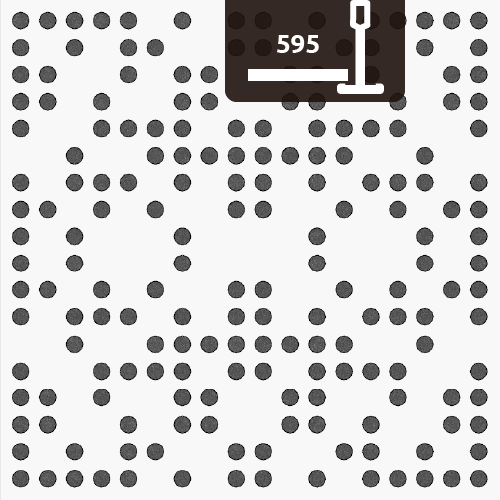

Lyra 20 SQR
Purpose:
-RT reduction
-High-frequency absorption
-Improving speech intelligibility
Recommended for:
-Office
-Hospitality
-Public Spaces
-Conference Room
-Auditorium
Absorption Range: 350 Hz to 3150 Hz
Acoustic Class: C | (aw) = 0,7
This product is available in the following Fire Rates:
FG | Furniture Grade
FR | Fire Rated
_______
PRODUCT COMPOSITION:
Lyra 20 SQR | Natural Wood Veneer | Primer Finished HMDF (FG)
-Natural Wood Veneer | Primer Finished HMDF *
-Sound PET acoustic core – Euro Class B
Lyra 20 SQR | Natural Wood Veener | Lacquered Fire retardant HMDF (FR)
-Natural Wood Veneer | Lacquered Fire Retardant HMDF
-Sound PET acoustic core – Euro Class B
* finished with a white or black primer paint that gives it a raw, matte effect.
– Perforated area: 20%
_______
Dimensions:
FG – PP | 595x595x38mm
FG – LW | 595x595x38mm
FG – NW | 595x595x38mm
FR – LW | 595x595x39mm
FR – NW | 595x595x39mm
Available Finishes:
(FG – PP) Painted Primer Finishes
Lyra 20 SQR – Ceiling Tile – FG | (L11) Raw White
EAN 13: 5600449583949
Dimensions: 595x595x38mm
Weight: 2.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.084m3| Weight: 15.0Kg
Lyra 20 SQR – Ceiling Tile – FG | (L12) Raw Black
EAN 13: 5600449583956
Dimensions: 595x595x38mm
Weight: 2.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.084m3| Weight: 15.0Kg
(FG – LW) Lacquered Wood Finishes
Lyra 20 SQR – Ceiling Tile – FG | (L16) RAL 9003
EAN 13: 5600928217808
Dimensions: 595x595x38mm
Weight: 2.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.084m3| Weight: 15.0Kg
Lyra 20 SQR – Ceiling Tile – FG | (L17) RAL 9005
EAN 13: 5600928217815
Dimensions: 595x595x38mm
Weight: 2.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.084m3| Weight: 15.0Kg
(FG – NW) Natural Wood Finishes
Lyra 20 SQR – Ceiling Tile – FG | (W08) Wenge Natura
EAN 13: 5600449583963
Dimensions: 595x595x38mm
Weight: 2.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.084m3| Weight: 15.0Kg
Lyra 20 SQR – Ceiling Tile – FG | (W09) Black Walnut Natura
EAN 13: 5600449583970
Dimensions: 595x595x38mm
Weight: 2.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.084m3| Weight: 15.0Kg
Lyra 20 SQR – Ceiling Tile – FG | (W11) Okoumé Natura
EAN 13: 5600449583987
Dimensions: 595x595x38mm
Weight: 2.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.084m3| Weight: 15.0Kg
Lyra 20 SQR – Ceiling Tile – FG | (W12) Ash Natura
EAN 13: 5600449583994
Dimensions: 595x595x38mm
Weight: 2.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.084m3| Weight: 15.0Kg
(FR – LW) Lacquered Wood Finishes
Lyra 20 SQR – Ceiling Tile – FR | (L16) RAL 9003
EAN 13: 5600928216320
Dimensions: 595x595x39mm
Weight: 2.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.084m3| Weight: 15.0Kg
Lyra 20 SQR – Ceiling Tile – FR | (L17) RAL 9005
EAN 13: 5600928216337
Dimensions: 595x595x39mm
Weight: 2.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.084m3| Weight: 15.0Kg
(FR – NW) Natural Wood Finishes
Lyra 20 SQR – Ceiling Tile – FR | (W08) Wenge Natura
EAN 13: 5600449584021
Dimensions: 595x595x39mm
Weight: 2.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.084m3| Weight: 15.0Kg
Lyra 20 SQR – Ceiling Tile – FR | (W09) Black Walnut Natura
EAN 13: 5600449584038
Dimensions: 595x595x39mm
Weight: 2.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.084m3| Weight: 15.0Kg
Lyra 20 SQR – Ceiling Tile – FR | (W11) Okoumé Natura
EAN 13: 5600449584045
Dimensions: 595x595x39mm
Weight: 2.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.084m3| Weight: 15.0Kg
Lyra 20 SQR – Ceiling Tile – FR | (W12) Ash Natura
EAN 13: 5600449584052
Dimensions: 595x595x39mm
Weight: 2.4Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.084m3| Weight: 15.0Kg
Download
Lyra 20 RCT
Purpose:
-RT reduction
-High-frequency absorption
-Improving speech intelligibility
Recommended for:
-Office
-Hospitality
-Public Spaces
-Conference Room
-Auditorium
Absorption Range: 350 Hz to 3150 Hz
Acoustic Class: C | (aw) = 0,7
This product is available in the following Fire Rates:
FG | Furniture Grade
FR | Fire Rated
_______
PRODUCT COMPOSITION:
Lyra 20 RCT | Natural Wood Veneer | Primer Finished HMDF (FG)
-Natural Wood Veneer | Primer Finished HMDF *
-Sound PET acoustic core – Euro Class B
Lyra 20 RCT | Natural Wood Veener | Lacquered Fire retardant HMDF (FR)
-Natural Wood Veneer | Lacquered Fire Retardant HMDF
-Sound PET acoustic core – Euro Class B
* finished with a white or black primer paint that gives it a raw, matte effect.
– Perforated area: 20%
_______
Dimensions:
FG – PP | 595x1190x38mm
FG – LW | 595x1190x38mm
FG – NW | 595x1190x38mm
FR – LW | 595x1190x39mm
FR – NW | 595x1190x39mm
Available Finishes:
(FG – PP) Painted Primer Finishes
Lyra 20 RCT – Ceiling Tile – FG | (L11) Raw White
EAN 13: 5600449584304
Dimensions: 595x1190x38mm
Weight: 5.9Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.0Kg
Lyra 20 RCT – Ceiling Tile – FG | (L12) Raw Black
EAN 13: 5600449584311
Dimensions: 595x1190x38mm
Weight: 5.9Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.0Kg
(FG – LW) Lacquered Wood Finishes
Lyra 20 RCT – Ceiling Tile – FG | (L16) RAL 9003
EAN 13: 5600928217723
Dimensions: 595x1190x38mm
Weight: 5.9Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.0Kg
Lyra 20 RCT – Ceiling Tile – FG | (L17) RAL 9005
EAN 13: 5600928217730
Dimensions: 595x1190x38mm
Weight: 5.9Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.0Kg
(FG – NW) Natural Wood Finishes
Lyra 20 RCT – Ceiling Tile – FG | (W08) Wenge Natura
EAN 13: 5600449584328
Dimensions: 595x1190x38mm
Weight: 5.9Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.0Kg
Lyra 20 RCT – Ceiling Tile – FG | (W09) Black Walnut Natura
EAN 13: 5600449584335
Dimensions: 595x1190x38mm
Weight: 5.9Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.0Kg
Lyra 20 RCT – Ceiling Tile – FG | (W11) Okoumé Natura
EAN 13: 5600449584342
Dimensions: 595x1190x38mm
Weight: 5.9Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.0Kg
Lyra 20 RCT – Ceiling Tile – FG | (W12) Ash Natura
EAN 13: 5600449584359
Dimensions: 595x1190x38mm
Weight: 5.9Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.0Kg
(FR – LW) Lacquered Wood Finishes
Lyra 20 RCT – Ceiling Tile – FR | (L16) RAL 9003
EAN 13: 5600928216245
Dimensions: 595x1190x39mm
Weight: 5.9Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.0Kg
Lyra 20 RCT – Ceiling Tile – FR | (L17) RAL 9005
EAN 13: 5600928216252
Dimensions: 595x1190x39mm
Weight: 5.9Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.0Kg
(FR – NW) Natural Wood Finishes
Lyra 20 RCT – Ceiling Tile – FR | (W08) Wenge Natura
EAN 13: 5600449584380
Dimensions: 595x1190x39mm
Weight: 5.9Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.0Kg
Lyra 20 RCT – Ceiling Tile – FR | (W09) Black Walnut Natura
EAN 13: 5600449584397
Dimensions: 595x1190x39mm
Weight: 5.9Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.0Kg
Lyra 20 RCT – Ceiling Tile – FR | (W11) Okoumé Natura
EAN 13: 5600449584403
Dimensions: 595x1190x39mm
Weight: 5.9Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.0Kg
Lyra 20 RCT – Ceiling Tile – FR | (W12) Ash Natura
EAN 13: 5600449584410
Dimensions: 595x1190x39mm
Weight: 5.9Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 42.0Kg
Download
Lyra 12 SQR I
Purpose:
-RT reduction
-High-frequency absorption
-Improving speech intelligibility
Recommended for:
-Office
-Hospitality
-Public Spaces
-Conference Room
-Auditorium
Absorption Range: 350 Hz to 3150 Hz
Acoustic Class: C | (aw) = 0,7
This product is available in the following Fire Rates:
FG | Furniture Grade
FR | Fire Rated
_______
PRODUCT COMPOSITION:
Lyra 20 SQR I | Natural Wood Veneer | Primer Finished HMDF (FG)
-Natural Wood Veneer | Primer Finished HMDF *
-Sound PET acoustic core – Euro Class B
Lyra 20 SQR I | Natural Wood Veener | Lacquered Fire retardant HMDF (FR)
-Natural Wood Veneer | Lacquered Fire Retardant HMDF
-Sound PET acoustic core – Euro Class B
* finished with a white or black primer paint that gives it a raw, matte effect.
– Perforated area:20%
_______
Dimensions:
FG – PP | 605x605x38mm
FG – LW | 605x605x38mm
FG – NW | 605x605x38mm
FR – LW | 605x605x39mm
FR – NW | 605x605x39mm
Available Finishes:
(FG – PP) Painted Primer Finishes
Lyra 20 SQR I – Ceiling Tile – FG | (L11) Raw White
EAN 13: 5600449584663
Dimensions: 605x605x38mm
Weight: 2.6Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 16.0Kg
Lyra 20 SQR I – Ceiling Tile – FG | (L12) Raw Black
EAN 13: 5600449584670
Dimensions: 605x605x38mm
Weight: 2.6Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 16.0Kg
(FG – LW) Lacquered Wood Finishes
Lyra 20 SQR I – Ceiling Tile – FG | (L16) RAL 9003
EAN 13: 5600928217747
Dimensions: 605x605x38mm
Weight: 2.6Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 16.0Kg
Lyra 20 SQR I – Ceiling Tile – FG | (L17) RAL 9005
EAN 13: 5600928217754
Dimensions: 605x605x38mm
Weight: 2.6Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 16.0Kg
(FG – NW) Natural Wood Finishes
Lyra 20 SQR I – Ceiling Tile – FG | (W08) Wenge Natura
EAN 13: 5600449584687
Dimensions: 605x605x38mm
Weight: 2.6Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 16.0Kg
Lyra 20 SQR I – Ceiling Tile – FG | (W09) Black Walnut Natura
EAN 13: 5600449584694
Dimensions: 605x605x38mm
Weight: 2.6Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 16.0Kg
Lyra 20 SQR I – Ceiling Tile – FG | (W11) Okoumé Natura
EAN 13: 5600449584700
Dimensions: 605x605x38mm
Weight: 2.6Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 16.0Kg
Lyra 20 SQR I – Ceiling Tile – FG | (W12) Ash Natura
EAN 13: 5600449584717
Dimensions: 605x605x38mm
Weight: 2.6Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 16.0Kg
(FR – LW) Lacquered Wood Finishes
Lyra 20 SQR I – Ceiling Tile – FR | (L16) RAL 9003
EAN 13: 5600928216269
Dimensions: 605x605x39mm
Weight: 2.6Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 16.0Kg
Lyra 20 SQR I – Ceiling Tile – FR | (L17) RAL 9005
EAN 13: 5600928216276
Dimensions: 605x605x39mm
Weight: 2.6Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 16.0Kg
(FR – NW) Natural Wood Finishes
Lyra 20 SQR I – Ceiling Tile – FR | (W08) Wenge Natura
EAN 13: 5600449584748
Dimensions: 605x605x39mm
Weight: 2.6Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 16.0Kg
Lyra 20 SQR I – Ceiling Tile – FR | (W09) Black Walnut Natura
EAN 13: 5600449584755
Dimensions: 605x605x39mm
Weight: 2.6Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 16.0Kg
Lyra 20 SQR I – Ceiling Tile – FR | (W11) Okoumé Natura
EAN 13: 5600449584762
Dimensions: 605x605x39mm
Weight: 2.6Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 16.0Kg
Lyra 20 SQR I – Ceiling Tile – FR | (W12) Ash Natura
EAN 13: 5600449584779
Dimensions: 605x605x39mm
Weight: 2.6Kg
BOX
Units per box: 5
Dimensions: 645x200x655mm
Volume: 0.084m3| Weight: 16.0Kg
Download
Lyra 20 RCT I
Purpose:
-RT reduction
-High-frequency absorption
-Improving speech intelligibility
Recommended for:
-Office
-Hospitality
-Public Spaces
-Conference Room
-Auditorium
Absorption Range: 350 Hz to 3150 Hz
Acoustic Class: C | (aw) = 0,7
This product is available in the following Fire Rates:
FG | Furniture Grade
FR | Fire Rated
_______
PRODUCT COMPOSITION:
Lyra 20 RCT I | Natural Wood Veneer | Primer Finished HMDF (FG)
-Natural Wood Veneer | Primer Finished HMDF *
-Sound PET acoustic core – Euro Class B
Lyra 20 RCT I | Natural Wood Veener | Lacquered Fire retardant HMDF (FR)
-Natural Wood Veneer | Lacquered Fire Retardant HMDF
-Sound PET acoustic core – Euro Class B
* finished with a white or black primer paint that gives it a raw, matte effect.
– Perforated area: 20%
_______
Dimensions:
FG – PP | 605x1210x38mm
FG – LW | 605x1210x38mm
FG – NW | 605x1210x38mm
FR – LW | 605x1210x39mm
FR – NW | 605x1210x39mm
Available Finishes:
(FG – PP) Painted Primer Finishes
Lyra 20 RCT I – Ceiling Tile – FG | (L11) Raw White
EAN 13: 5600449585028
Dimensions: 605x1210x38mm
Weight: 6.2Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 44.5Kg
Lyra 20 RCT I – Ceiling Tile – FG | (L12) Raw Black
EAN 13: 5600449585035
Dimensions: 605x1210x38mm
Weight: 6.2Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 44.5Kg
(FG – LW) Lacquered Wood Finishes
Lyra 20 RCT I – Ceiling Tile – FG | (L16) RAL 9003
EAN 13: 5600928217761
Dimensions: 605x1210x38mm
Weight: 6.2Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 44.5Kg
Lyra 20 RCT I – Ceiling Tile – FG | (L17) RAL 9005
EAN 13: 5600928217778
Dimensions: 605x1210x38mm
Weight: 6.2Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 44.5Kg
(FG – NW) Natural Wood Finishes
Lyra 20 RCT I – Ceiling Tile – FG | (W08) Wenge Natura
EAN 13: 5600449585042
Dimensions: 605x1210x38mm
Weight: 6.2Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 43.5Kg
Lyra 20 RCT I – Ceiling Tile – FG | (W09) Black Walnut Natura
EAN 13: 5600449585059
Dimensions: 605x1210x38mm
Weight: 6.2Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 43.5Kg
Lyra 20 RCT I – Ceiling Tile – FG | (W11) Okoumé Natura
EAN 13: 5600449585066
Dimensions: 605x1210x38mm
Weight: 6.2Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 43.5Kg
Lyra 20 RCT I – Ceiling Tile – FG | (W12) Ash Natura
EAN 13: 5600449585073
Dimensions: 605x1210x38mm
Weight: 6.2Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 43.5Kg
(FR – LW) Lacquered Wood Finishes
Lyra 20 RCT I – Ceiling Tile – FR | (L16) RAL 9003
EAN 13: 5600928216283
Dimensions: 605x1210x39mm
Weight: 6.2Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 43.5Kg
Lyra 20 RCT I – Ceiling Tile – FR | (L17) RAL 9005
EAN 13: 5600928216290
Dimensions: 605x1210x39mm
Weight: 6.2Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 43.5Kg
(FR – NW) Natural Wood Finishes
Lyra 20 RCT I – Ceiling Tile – FR | (W08) Wenge Natura
EAN 13: 5600449585103
Dimensions: 605x1210x39mm
Weight: 6.2Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 43.5Kg
Lyra 20 RCT I – Ceiling Tile – FR | (W09) Black Walnut Natura
EAN 13: 5600449585110
Dimensions: 605x1210x39mm
Weight: 6.2Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 43.5Kg
Lyra 20 RCT I – Ceiling Tile – FR | (W11) Okoumé Natura
EAN 13: 5600449585127
Dimensions: 605x1210x39mm
Weight: 6.2Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 43.5Kg
Lyra 20 RCT I – Ceiling Tile – FR | (W12) Ash Natura
EAN 13: 5600449585134
Dimensions: 605x1210x39mm
Weight: 6.2Kg
BOX
Units per box: 5
Dimensions: 1250x200x665mm
Volume: 0.166m3| Weight: 43.5Kg
