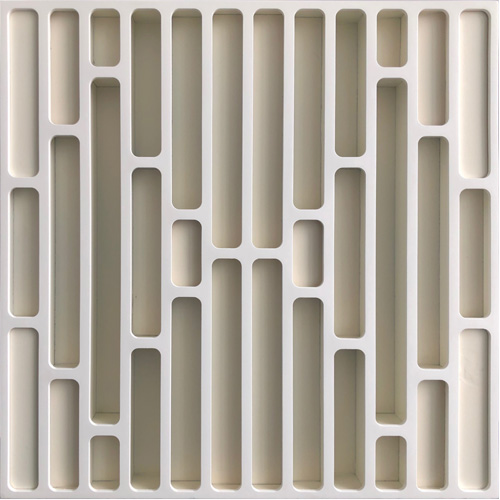

Logan W – Diffuser
Logan AE - Diffuser
Logan Diffuser is designed using a two-dimensional QRD pattern, that is carefully calibrated to provide diffusion over a large bandwidth, given the precise width and depth of the integrated surface treatment.
The scattering begins at 400 Hz and goes up to 4000 Hz with an even 3D scattering response.
Logan is a high quality, high performance solution for broadcasting, auditoriums, concert halls and music rooms. Made from premium materials and available in several finishes, Logan is a premium solution for sound field control.
Features
Type:
2D – QRD Diffuser
Scattering range:
600 Hz to 6000 Hz
Purposes
-Enlarging sweet spot
-Specular reflection control
-Flutter echo control
Overview
Purpose
-Enlarging sweet spot
-Specular reflection control
-Flutter echo control
Recommended for
-Opera house
-Auditorium
-Conference Room
-Concert halls
Type: 2D – QRD Diffuser
Scattering range: 600 Hz to 6000 Hz
Logan Diffuser is designed using a two-dimensional QRD pattern
_____
This product is available in the following Fire Rate:
FR | Euroclass B s1,d0
______________
PRODUCT COMPOSITION:
Logan AE | Lacquered Wood Finishes ( FR )
-Natural wood veneer | Lacquered HMDF
-Wood & Cement core composite
_____
Product Dimensions:
Logan AE | 595x595x65mm
_____
Integrated fixing system
12Kg per Unit
Installation: Integrated Fixing System.
Dimensions:
FR – LW | 595x595x65mm
Available Finishes:
(FR - LW) Lacquered Wood Finishes
Logan AE – Diffuser – FR | (L01) Blanc | Black Interior
EAN 13: 5600449554239
Dimensions: 595x595x65mm
Weight: 11.98Kg
BOX
Units per box: 1
Dimensions: 645x200x655mm
Volume: 0.084m3 | Weight: 12.88Kg
Logan AE – Diffuser – FR | (L01) Blanc | White Interior
EAN 13: 5600449529282
Dimensions: 595x595x65mm
Weight: 11.98Kg
BOX
Units per box: 15
Dimensions: 645x200x655mm
Volume: 0.084m3 | Weight: 16.8Kg

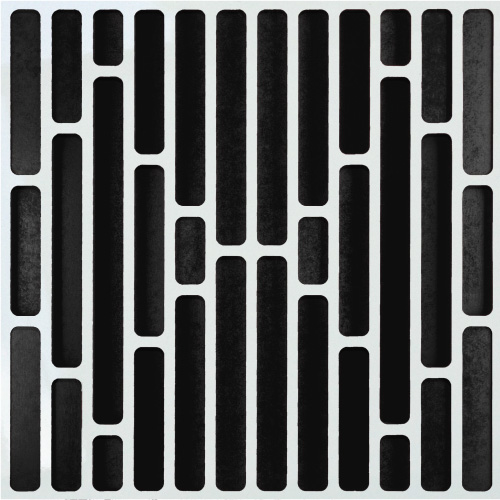

Logan AE – Diffuser – FR | (L02) Noir | Black Interior
EAN 13: 5600449554246
Dimensions: 595x595x65mm
Weight: 11.98Kg
BOX
Units per box: 15
Dimensions: 645x200x655mm
Volume: 0.084m3 | Weight: 16.8Kg
Logan AE – Diffuser – FR | (L02) Noir | White Interior
EAN 13: 5600449529299
Dimensions: 595x595x65mm
Weight: 11.98Kg
BOX
Units per box: 1
Dimensions: 645x200x655mm
Volume: 0.084m3 | Weight: 12.88Kg
Logan AE – Diffuser – FR | (L03) Rouge | Black Interior
EAN 13: 5600449554253
Dimensions: 595x595x65mm
Weight: 11.98Kg
BOX
Units per box: 15
Dimensions: 645x200x655mm
Volume: 0.084m3 | Weight: 16.8Kg
Logan AE – Diffuser – FR | (L03) Rouge | White Interior
EAN 13: 5600449536297
Dimensions: 595x595x65mm
Weight: 11.98Kg
BOX
Units per box: 15
Dimensions: 645x200x655mm
Volume: 0.084m3 | Weight: 16.8Kg
Logan AE – Diffuser – FR | (W01) Cerise | Black Interior
EAN 13: 5600449554260
Dimensions: 595x595x65mm
Weight: 11.98Kg
BOX
Units per box: 1
Dimensions: 645x200x655mm
Volume: 0.084m3 | Weight: 12.88Kg
Logan AE – Diffuser – FR | (W01) Cerise | White Interior
EAN 13: 5600449529251
Dimensions: 595x595x65mm
Weight: 11.98Kg
BOX
Units per box: 15
Dimensions: 645x200x655mm
Volume: 0.084m3 | Weight: 16.8Kg
Logan AE – Diffuser – FR | (W02) Marron | Black Interior
EAN 13: 5600449554277
Dimensions: 595x595x65mm
Weight: 11.98Kg
BOX
Units per box: 15
Dimensions: 645x200x655mm
Volume: 0.084m3 | Weight: 16.8Kg
Logan AE – Diffuser – FR | (W02) Marron | White Interior
EAN 13: 5600449529268
Dimensions: 595x595x65mm
Weight: 11.98Kg
BOX
Units per box: 1
Dimensions: 645x200x655mm
Volume: 0.084m3 | Weight: 12.88Kg
Logan AE – Diffuser – FR | (W03) Wenge | Black Interior
EAN 13: 5600449554284
Dimensions: 595x595x65mm
Weight: 11.98Kg
BOX
Units per box: 15
Dimensions: 645x200x655mm
Volume: 0.084m3 | Weight: 16.8Kg
Logan AE – Diffuser – FR | (W03) Wenge | White Interior
EAN 13: 5600449529275
Dimensions: 595x595x65mm
Weight: 11.98Kg
BOX
Units per box: 15
Dimensions: 645x200x655mm
Volume: 0.084m3 | Weight: 16.8Kg
