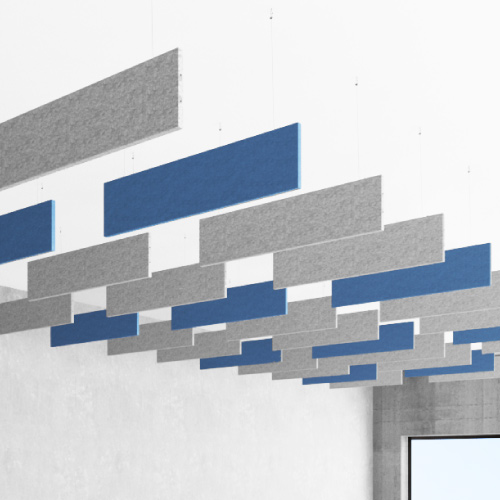

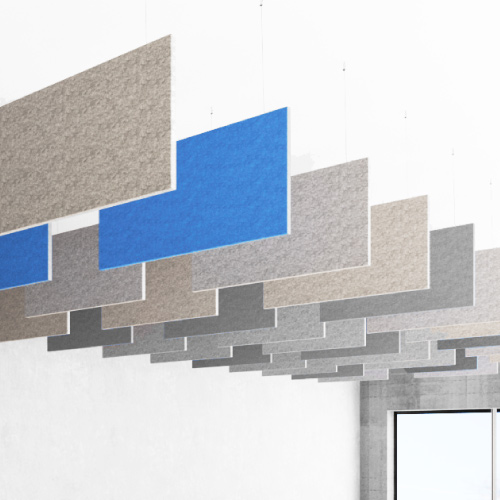

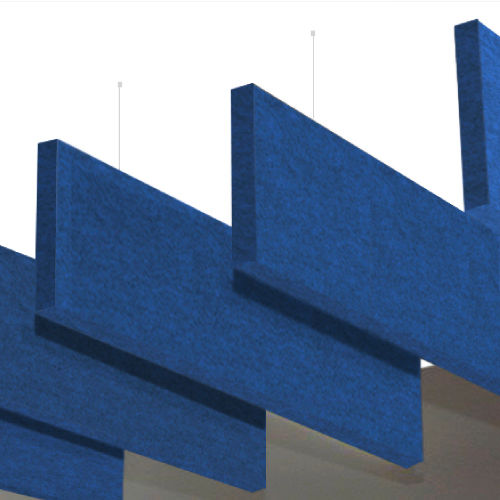

Kulm Baffle is a versatile baffle for ceiling mounted absorption. Ceiling baffles are an extremely efficient option for any space, with large surface area to boost performance, and the possibility to adapt baffles arrays to practically any type of space – it is a practical solution for a myriad of environments, especially from large open-plan spaces, such as office, broadcasting or industrial applications, but also for smaller spaces with limited wall space. Distancing the panel from any opposing surfaces drastically increases its absorption for mid-high frequencies, making it an ideal solution for open environments with a very high reverberation time.

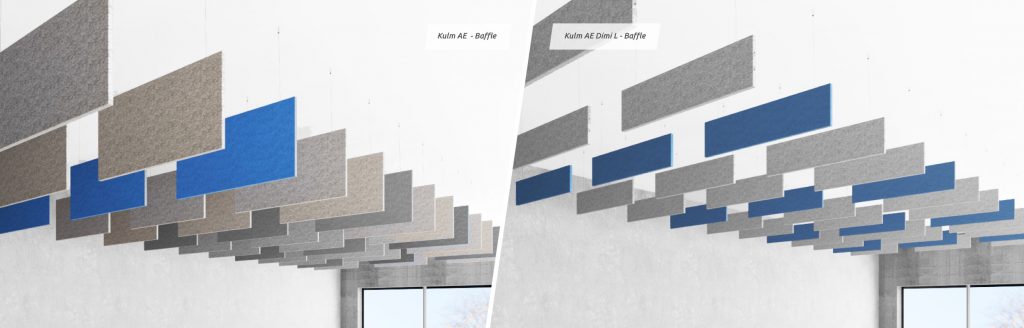

Kulm is available in 2 sizes and in a range of premium fabric finishes, with an additional add-on for vertical installation. Kulm is included with an easy-to-use adjustable height hanging system.
Features
Type:
Absorber

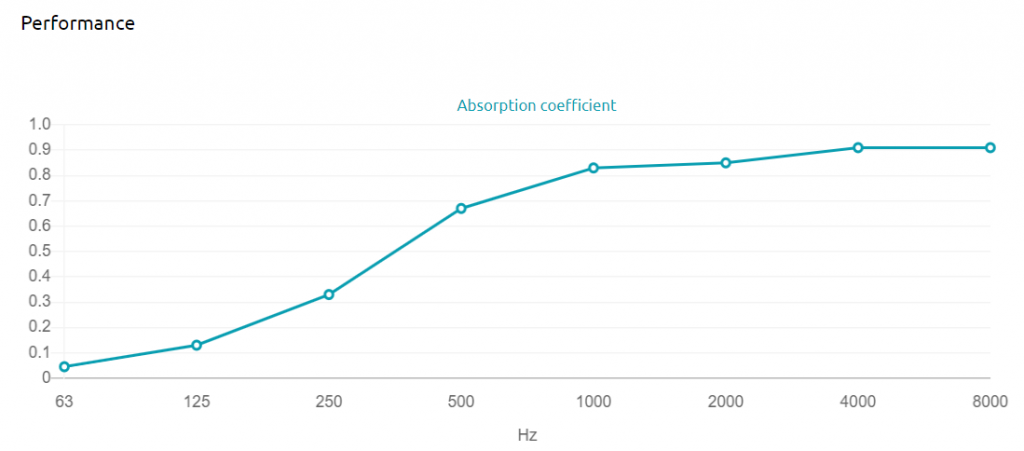

Absorption Range:
315 Hz to 3150 Hz
Acoustic Class
C | (aw) = 0,6
Absorption Range: 315 Hz to 3150 Hz
Acoustic Class: B | (aw) = 0,8
Recycled PET absorption – Class 1 product according to the OEKO-TEX@ Standard 100.
This product is available in the following Fire Rates:
FG | Furniture Grade
FR | Fire Rated
FR | Fire Rated & COVID-19 Safe
PRODUCT COMPOSITION:
Kulm | Suede Fabric Finishes (FG)
-Suede Acoustic Fabric
-Marine grade plywood structural frame*
-Sound PET absorption layer
Kulm | Felted Fabric Finishes (FR)
-Felted Acoustic Fabric
-Fire retardant HMDF structural frame*
-Sound PET acoustic core – Euro Class B
Kulm | Twill Fabric Finishes (FR & COVID-19 Safe)
-Twill Acoustic Fabric – COVID-19 Safe
-Fire retardant HMDF structural frame*
-Sound PET absorption layer
The PET core is a material made entirely from recycled PET plastic, that undergoes an environmentally-friendly transformation process into the non-woven acoustic core we use in this panel. To keep this process as efficient as possible, the thickness of the product may vary slightly (±3mm).

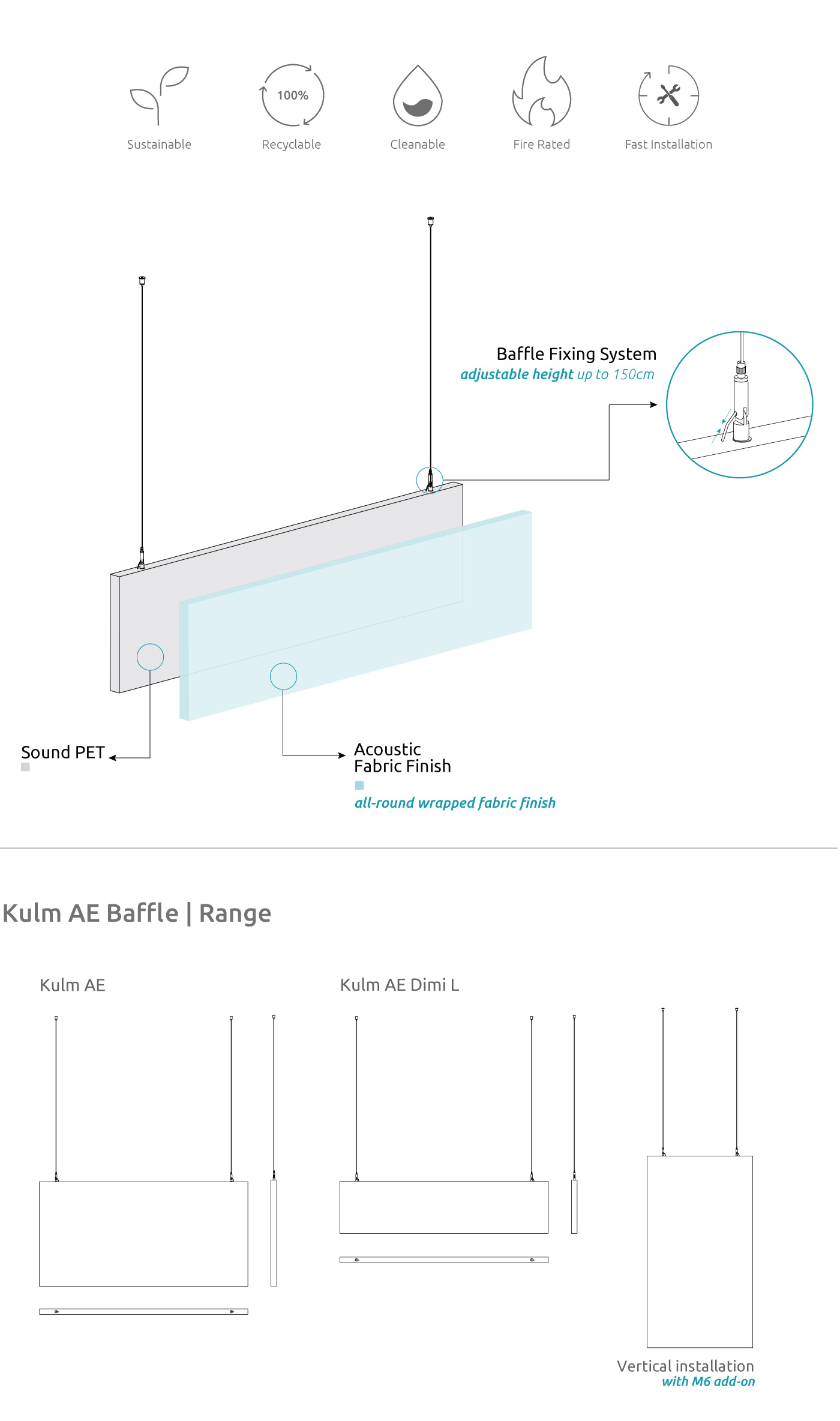

Installation:
– Ceiling suspension kit included
Kulm is suspended with an easily adjustable cable system, that allows to hang the panel up to 1,5m from the ceiling.
*Equipped with two M6 Screw Thread receivers
Dimensions:
FG – SF | 1190x595x32mm
FR – TF | 1190x595x32mm
FR – TT | 1190x595x32mm
Absorption Range: 315 Hz to 3150 Hz
Acoustic Class: B | (aw) = 0,8
Recycled PET absorption – Class 1 product according to the OEKO-TEX@ Standard 100.
This product is available in the following Fire Rates:
FG | Furniture Grade
FR | Fire Rated
FR | Fire Rated & COVID-19 Safe
PRODUCT COMPOSITION:
Kulm | Suede Fabric Finishes (FG)
-Suede Acoustic Fabric
-Marine grade plywood structural frame*
-Sound PET absorption layer
Kulm | Felted Fabric Finishes (FR)
-Felted Acoustic Fabric
-Fire retardant HMDF structural frame*
-Sound PET acoustic core – Euro Class B
Kulm | Twill Fabric Finishes (FR & COVID-19 Safe)
-Twill Acoustic Fabric – COVID-19 Safe
-Fire retardant HMDF structural frame*
-Sound PET absorption layer
The PET core is a material made entirely from recycled PET plastic, that undergoes an environmentally-friendly transformation process into the non-woven acoustic core we use in this panel. To keep this process as efficient as possible, the thickness of the product may vary slightly (±3mm).
Installation:
– Ceiling suspension kit included
Kulm is suspended with an easily adjustable cable system, that allows to hang the panel up to 1,5m from the ceiling.
*Equipped with two M6 Screw Thread receivers
Dimensions:
FG – SF | 1190x297x32mm
FR – TF | 1190x297x32mm
FR – TT | 1190x297x32mm
