Floor - Balanced 2

Sound Insulation Solution

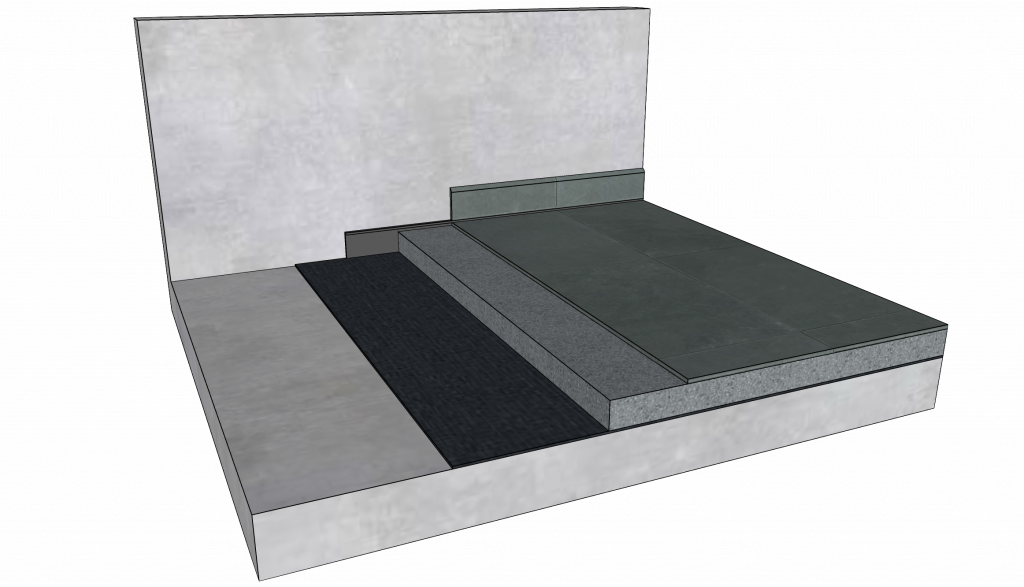

The Floor – Balanced  solution  grants a very high efficiency in impact noise reduction, taking little space out of the room. The new dBA US-Rubber (or the US-Cork) layed under a 50mm concrete layer is a very efficient and simple way to improve sound insulation when a ceramic flooring is intented . This solution installed on a 150 mm concrete slab is expected to result in an Airborne Sound Reduction Index (Rw) of 57 dB and an Impact Sound Pressure Level (Lw) of 58 dB.

General Specifications

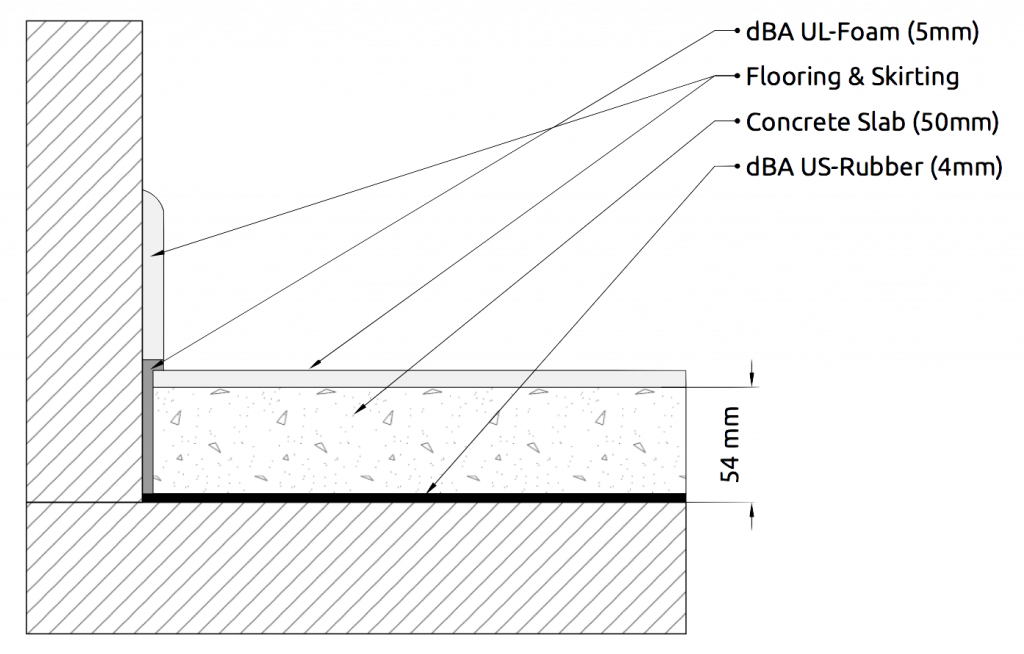

Construction Elements:

-Concrete Slab (50mm)
-dBA UL-Foam
-dBA US-Rubber

Compatible Floorings: -Hardwood, Laminated, Vinyl and Carpet, Ceramic Tiles.

Insulation Total Thickness: ≈ 54 mm

Acoustic Performance

* This Rand L’n,w values  do not include the flooring insulation contribution and assume the solution is installed over a 150 mm concrete slab.
