dBA FS-Rubber

 Wooden Floor Support

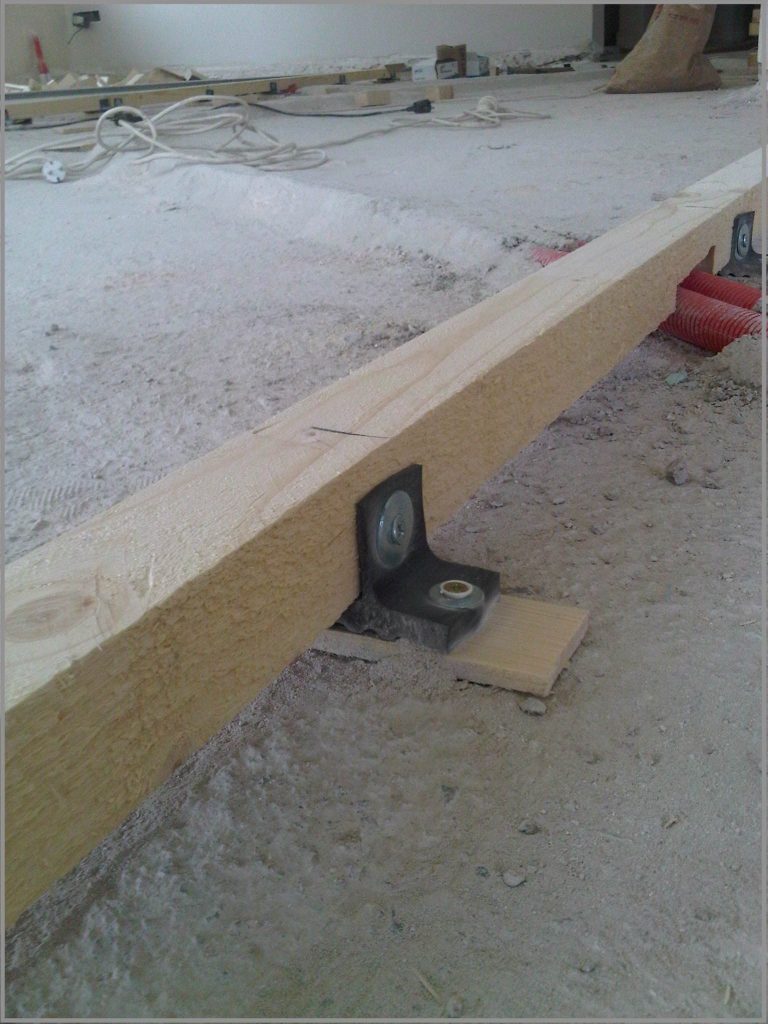

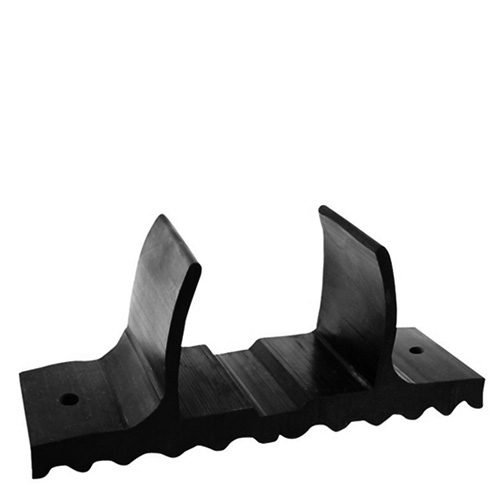

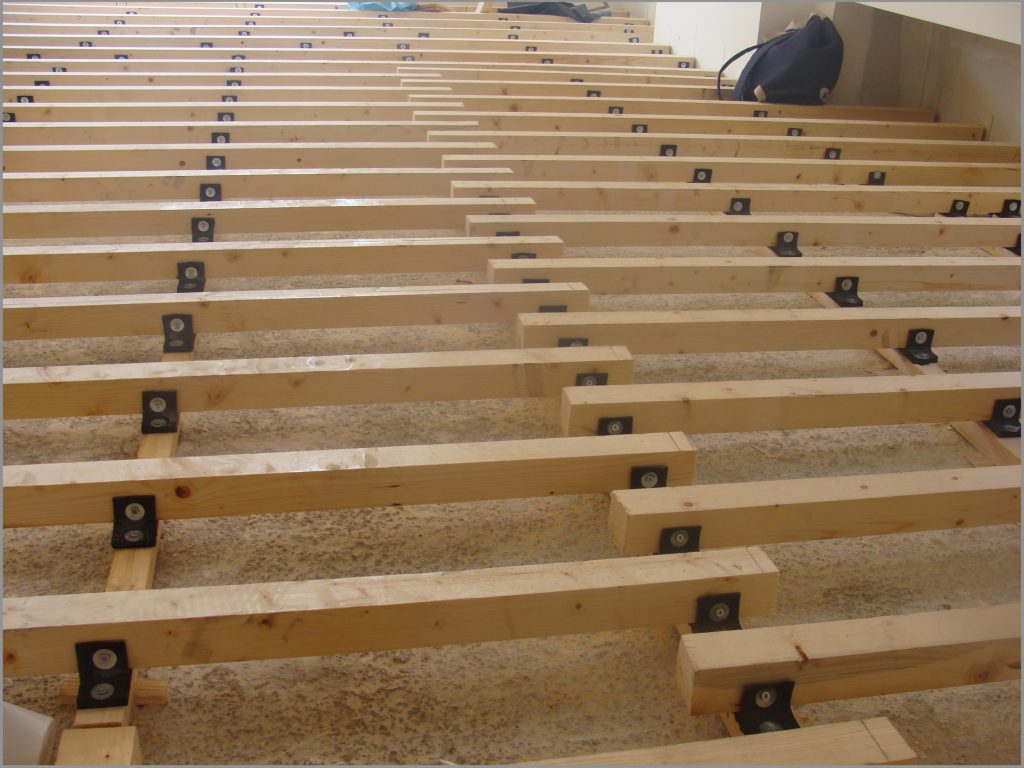

The dBA FS-Rubber is a anti-vibration elastic support for wooden floors. It has a C shaped receptor for wooden beams and the base can be fixed in any hard surface. This product is used as a acoustic decoupler for floating floors, which prevents the impact sound generated by footsteps, for example, from propagating to the building main structure.

General Specifications

References:

  • dBA FS-Rubber

Materials: Rubber

Installation: Mechanical

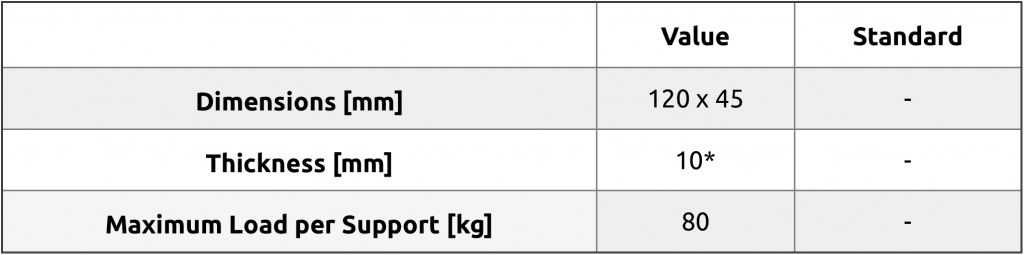

Technical Information

* 10mm thick base. 50mm total height;

**50mm between slats for wooden beams support.

Applications
